LAUNCH Creader TPMS 5011 V2 TPMS Activation Diagnostic Tool WIFI Upgrade 12 Reset Functions Activate 315/433MHZ & 2.4Ghz Tire Pressure Sensors

SKU: AD219
In Stock
$230.00
In Stock
Other people want this. 18 people have this in their carts right now.
SKU: AD219 Category:

Description

LAUNCH Creader TPMS 5011 V2 TPMS Activation and Diagnostic Tool

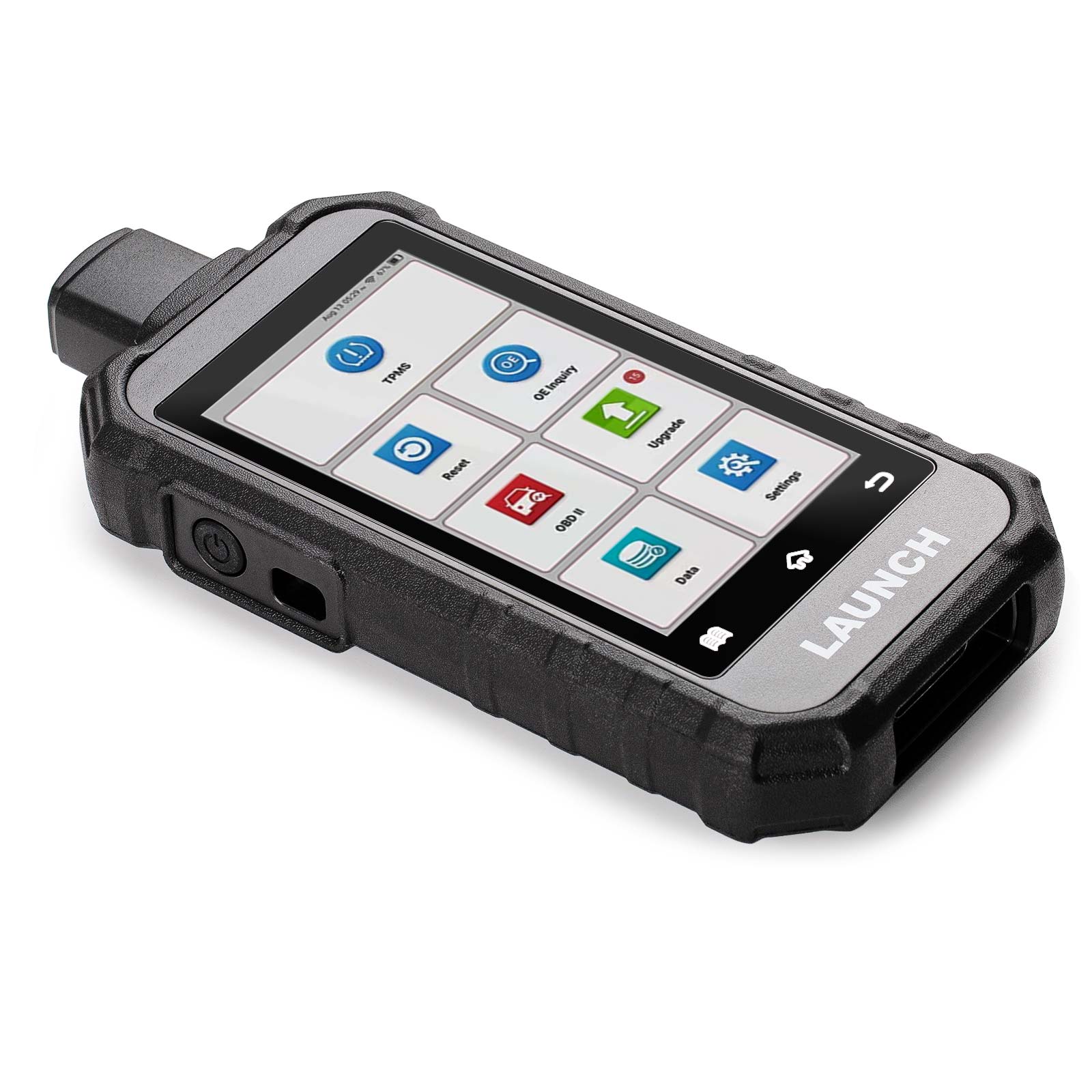

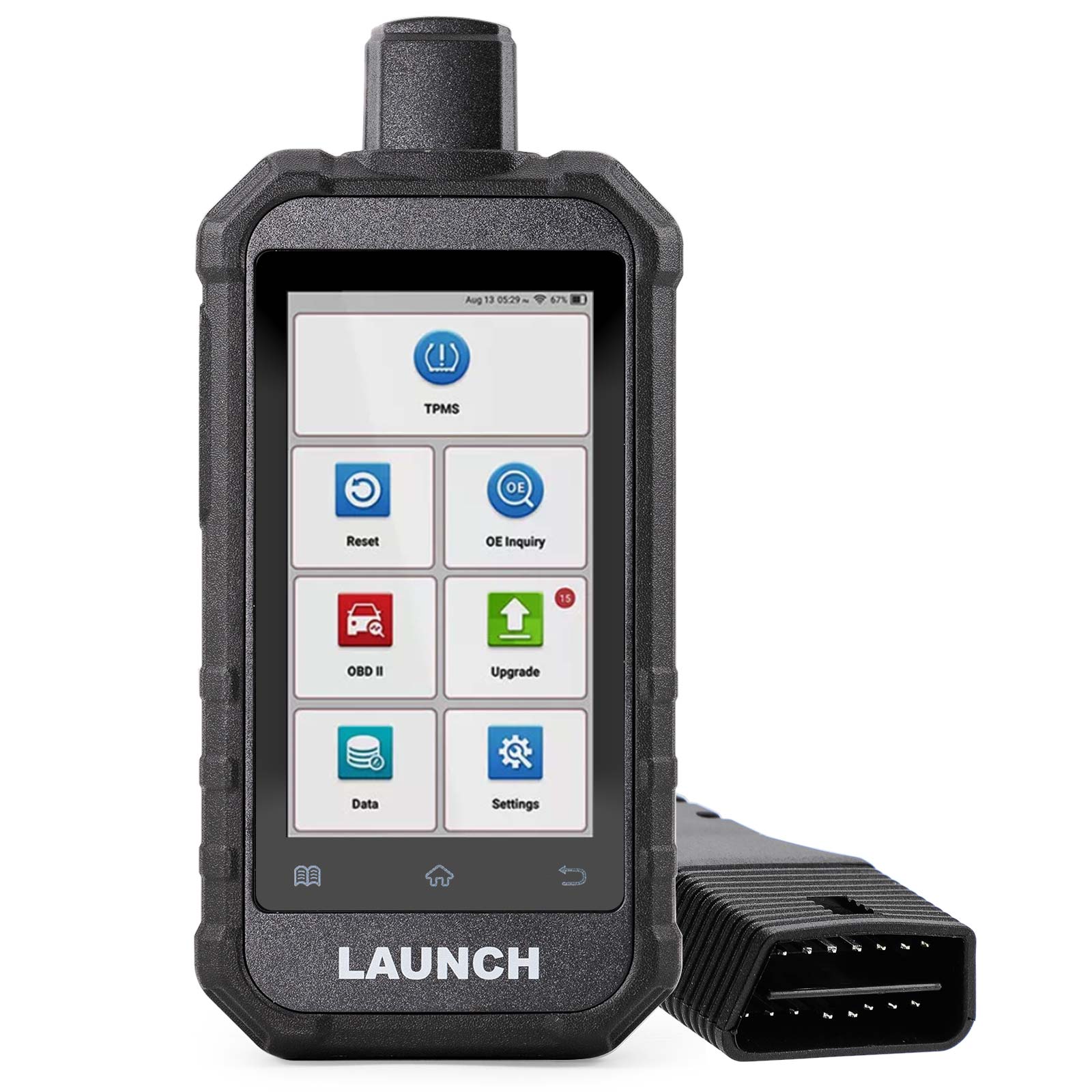

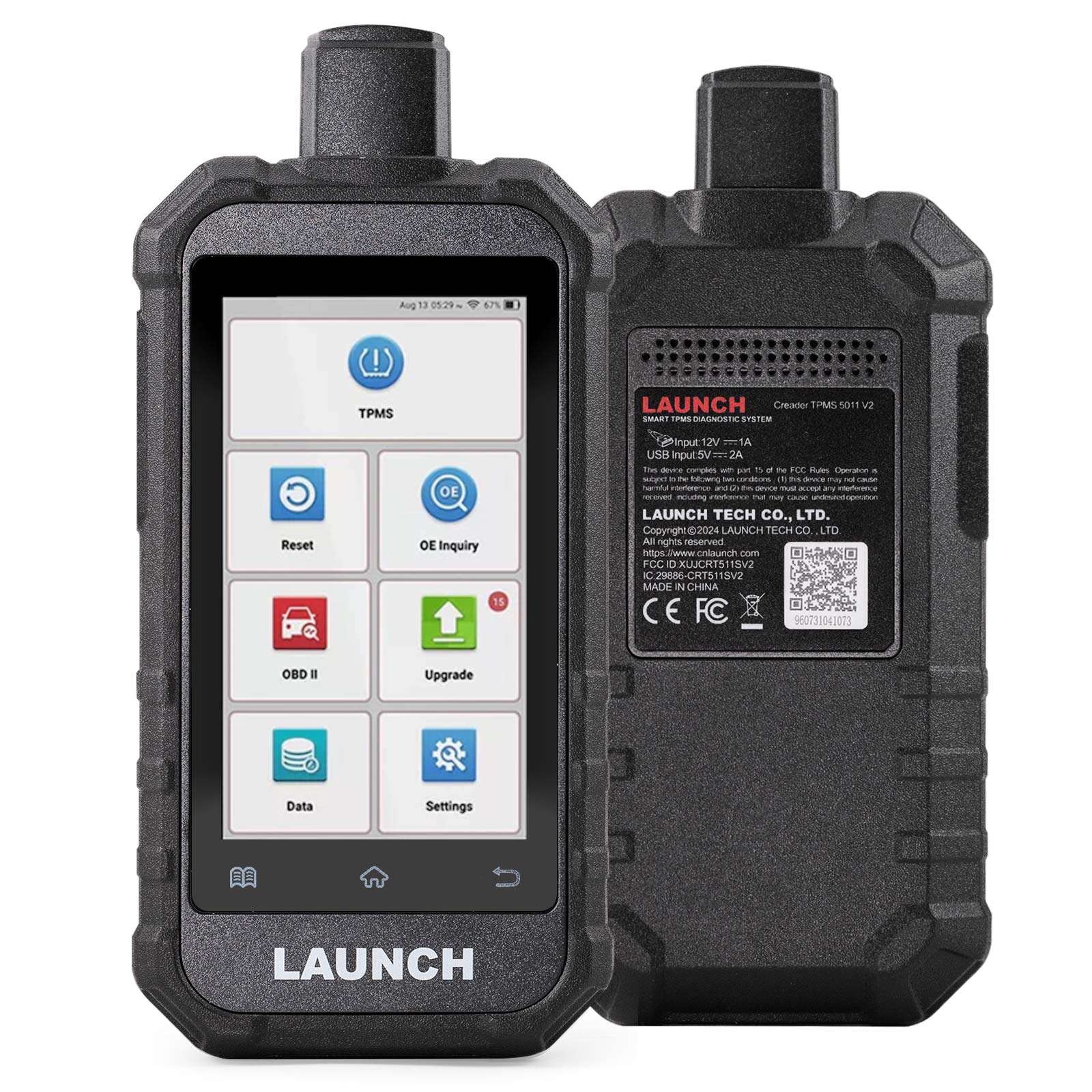

Creader TPMS 5011 V2 is an intelligent tire pressure system detection terminal based on Android operating system, suitable for tire pressure systems of multiple models of vehicles. It has the functions of TPMS sensor activation, reading, diagnosis, learning and programming. Moreover, it can connect to Wi-Fi for one-click upgrade.

This device is for professional technicians or maintenance personnel. Its application scenarios are mainly various types of automobile repair companies and 4S stores. It also has 12 special functions: ABS exhaust, battery matching, brake pad replacement, DPF regeneration, throttle learning, IMMO matching, injector coding, maintenance light reset, steering angle learning, seat calibration, sunroof initialization, door and window calibration.

Product Features:

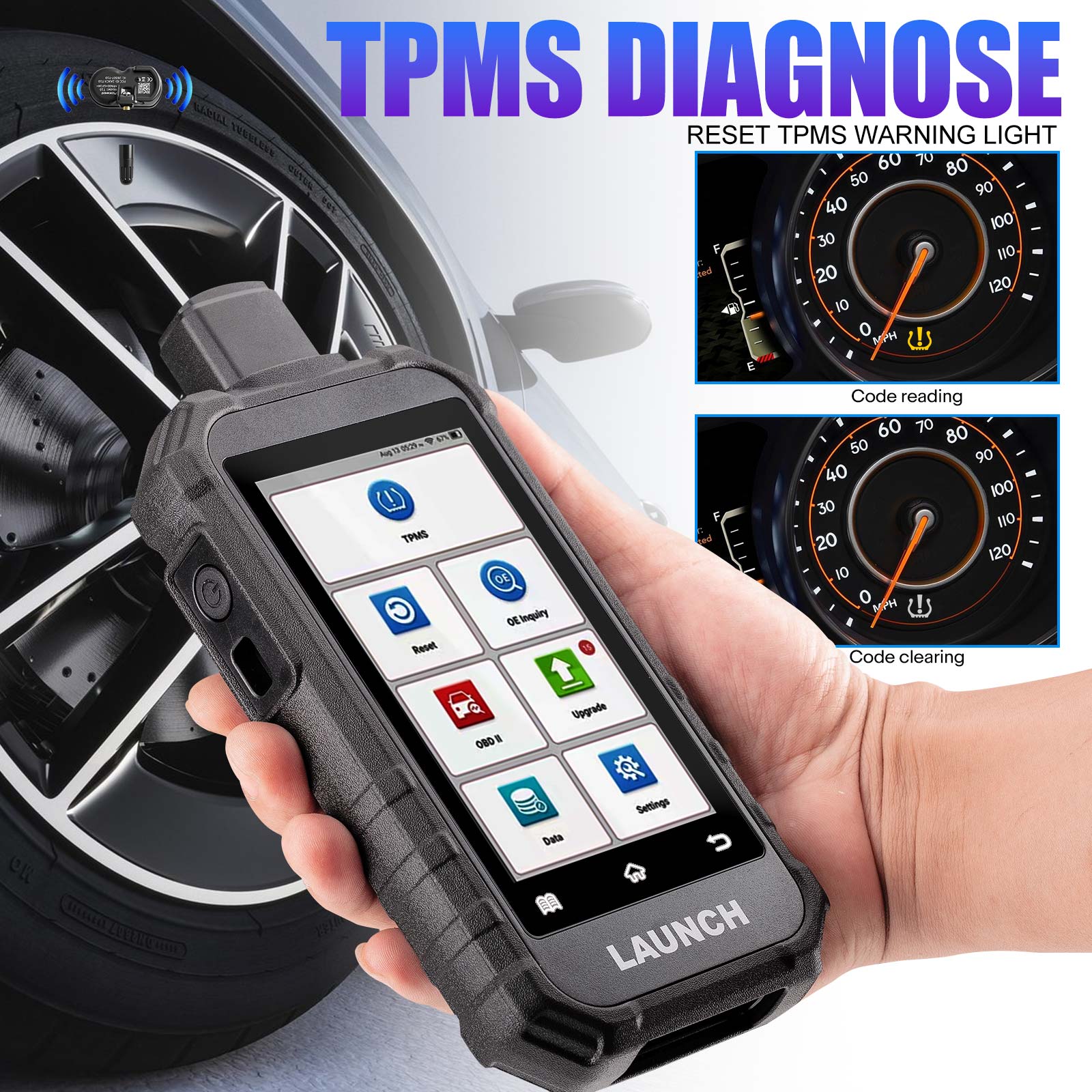

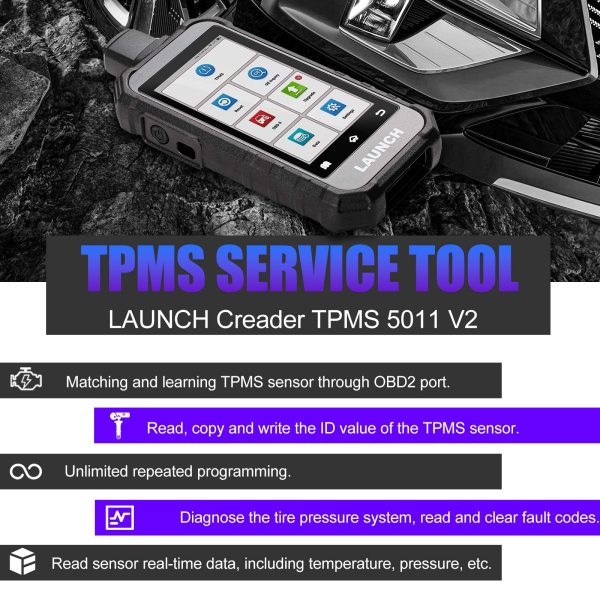

1. Tire pressure matching learning can be performed through the OBD interface, ECU ID can be read, and the tire pressure system can be diagnosed, including code reading, code clearing, etc.
2. Sensor ID values ​​can be read/copied/written.
3. Sensor data can be written through programming, and unlimited repeated programming is supported.
4. Real-time tire pressure data can be read through activation, including sensor ID, tire pressure, temperature, battery status, etc.
5. WIFI one-click upgrade, no need to use a computer to plug and unplug the memory card to upgrade, easy to upgrade.

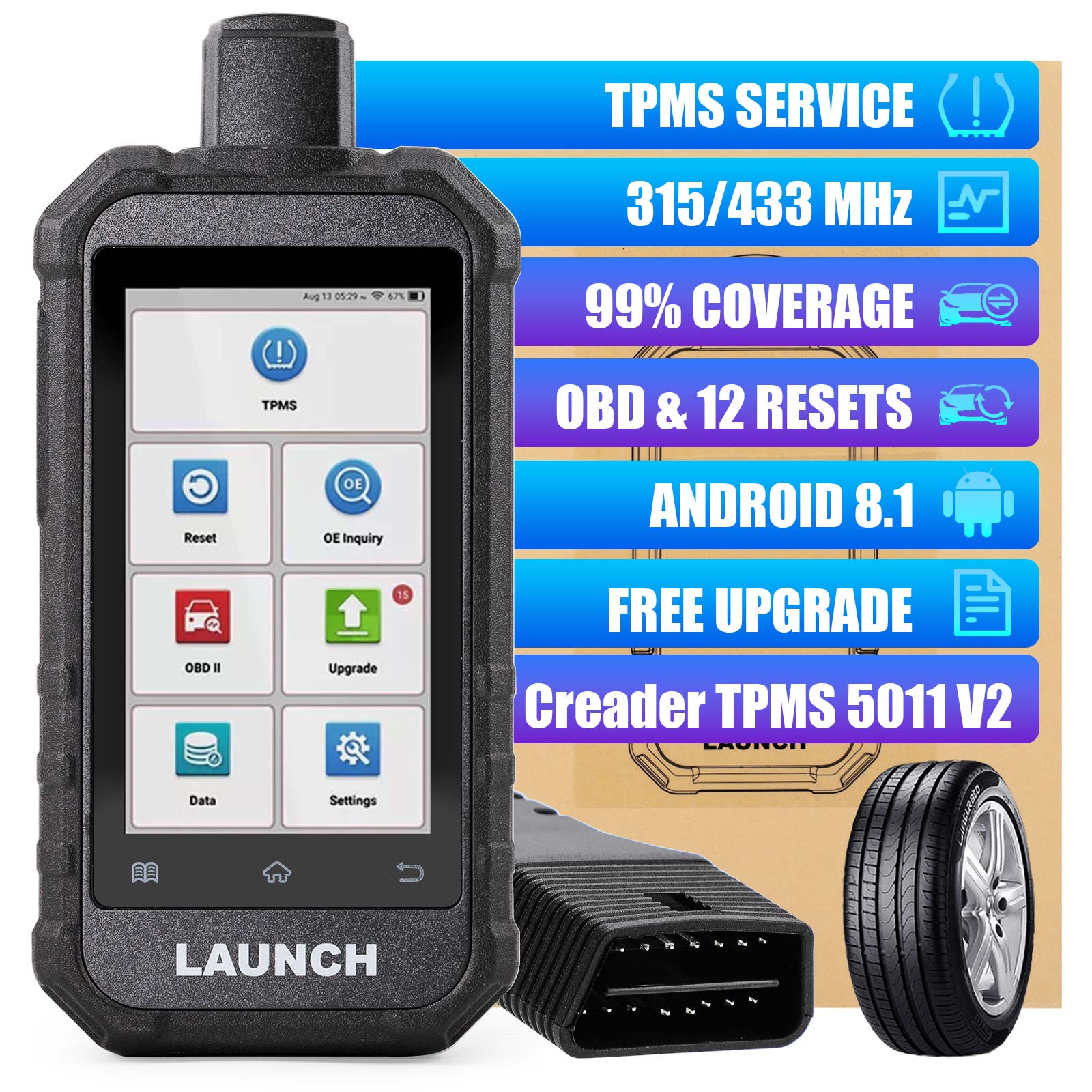

6. All 315/433MHZ and 2.4Ghz tire pressure sensors can be activated (the activation function of Tesla Bluetooth sensors will be added soon!)
7. OE number query, you can query the model menu according to the sensor part number, and the model menu positioning is more accurate.
8. Support the generation and sharing of diagnostic reports, which is conducive to historical diagnostic queries and after-sales maintenance.
9. Support data feedback, which is conducive to development and timely optimization, and fixed-point push version, helping customers solve vehicle problems in a timely manner.
10. Unit and ID options are directly presented in the vehicle function interface, making settings easier.
11. Supported 11 languages: German, English, Spanish, French, Korean, Italian, Japanese, Traditional Chinese, Portuguese, Russian, Arabic
12. Supports expansion of tire tread meter, diagnostic feedback, tire pressure maintenance information learning, screenshots and sharing in LAUNCH Academy to meet users’ more comprehensive needs.

Product Comparison Between Creader TPMS 5011 V2 and CRT5011E/CRT5011X

 Model Creader TPMS 5011 V2 CRT5011E/CRT5011X
Screen 5-inch 3.5-inch
Resolution 720*1280 320*480
Battery 6000mAh 3100mAh
Storage 2+32GB
WIFI+Bluetooth 2.4G
OBDII interface Input voltage 9~18V 9~18V
Operating temperature 0℃~45℃ 0℃~45℃
Storage temperature -20℃~+70℃ -20℃~+70℃
Size 211.5*99*34.5mm 112.5*198*35mm
Input voltage 9~18VDC input via vehicle diagnostic socket/5V via USB cable 9~18VDC input via vehicle diagnostic socket/5V via USB cable
Languages German, English, Spanish, French, Korean, Italian, Japanese, Traditional Chinese, Portuguese, Russian, Arabic German, English, Spanish, French, Korean, Italian, Japanese, Traditional Chinese, Portuguese, Russian, Polish
Certification Type CE/FCC/ROHS/IC CE/FCC/ROHS

Product Specifications:

screen 5-inch 720P, touch screen
interface 1. Standard OBDII interface
2. TYPE-C interface
Android version Android 8.1
storage 2+32GB
battery 6000mAh
CPU 1.3G
communications/upgrades WIFI 2.4Ghz (b/g/n)
weight <880g
Storage temperature -20~70 ℃
Operating temperature -10~50 ℃

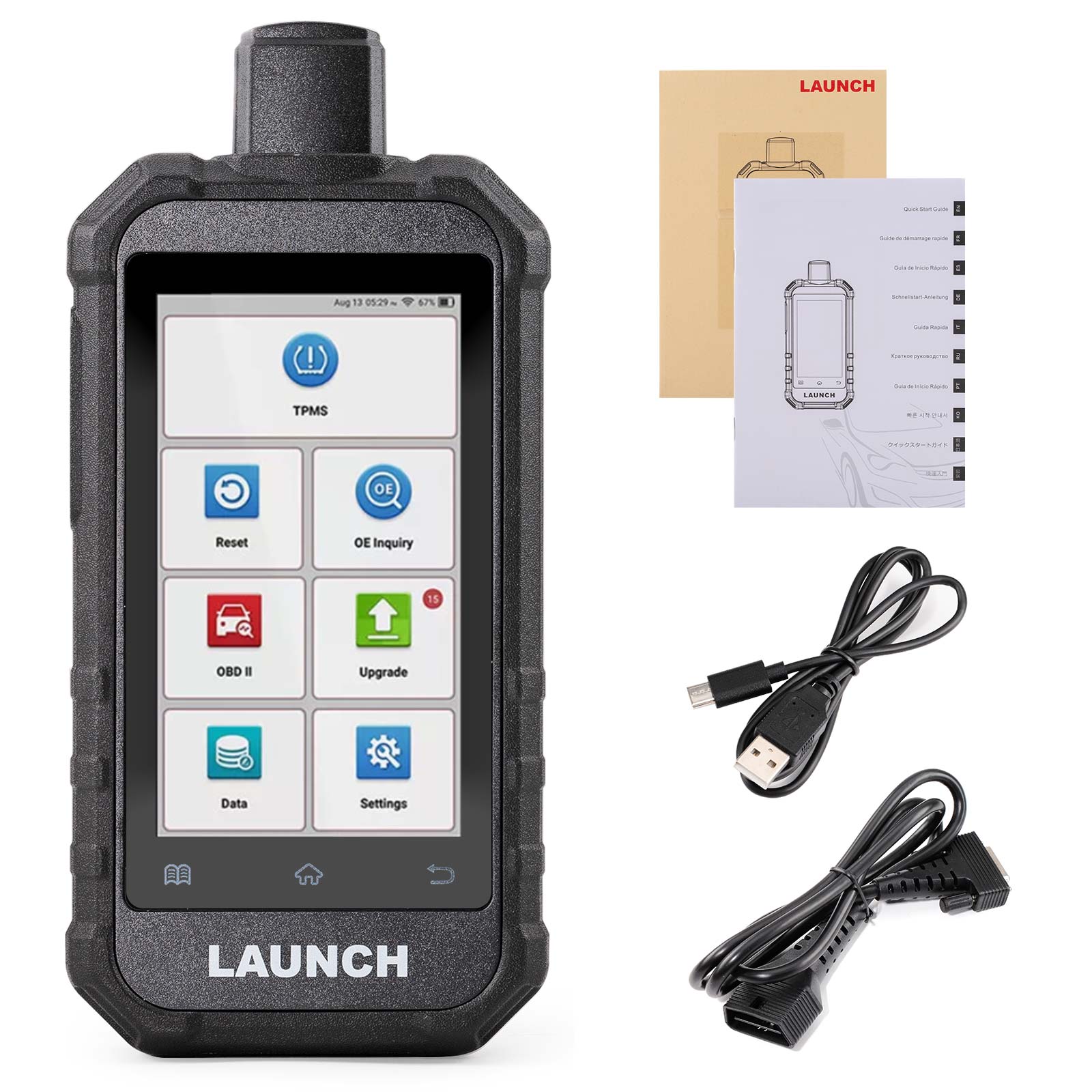

Package includes:

1pc x main unit

1pc x main cable
1pc x charging cable
1pc x quick start

Additional information

Weight 1 kg
