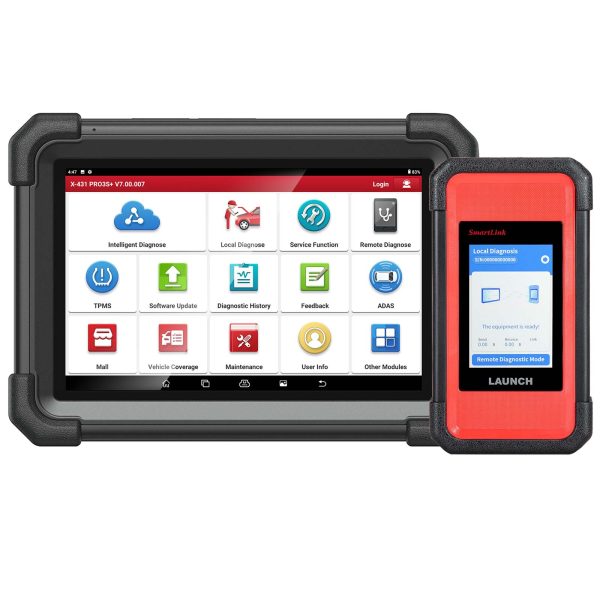

LAUNCH X431 PRO3S+ SmartLink HD for 12V&24V Diesel&Gasoline Support Bi-Directional Scan Tool, ECU Coding, Support CANFD &DOIP, J2534 Programming
Description
LAUNCH X431 PRO3S SmartLink HD for 12V&24V Diesel&Gasoline Support Bi-Directional Scan Tool, ECU Coding, Support CANFD &DOIP, J2534 Programming
LAUNCH X431 PRO3S SmartLink HD is upgraded of LAUNCH X431 PRO3S HDIII, ranks No.1 in vehicle coverage. It can work for cars/trucks/buses/trailers/excavators/diesel engine/construction machinery/pick-up, etc.
Launch X431 Pro3s Smartlink HD Highlights:
1. The tablet has a higher version system, larger storage, and longer battery life, making diagnosis faster, more stable, and more durable.
2. Supports Topology Mapping diagnosis
3. Supports EV diagnostic kit (NEW)
4. Support 12V & 24V diesel gasoline cars and trucks
5. With Smartlink C 2.0 truck module, supports, J2534, CAN FD and DoIP protocol
6. With 8-core qualcomm-snapdragon processor
7. ALL-System ALL-Function Diagnostics Full Bi-directional Control ((Active Test))
8. Supports ECU Coding & Online Coding & Key Programming
9. Wide car model coverage, strong diagnostic function, supports full system diagnosis of all supported car models
10. Support VIN code automatic identification function to quickly enter diagnosis
11. Supports reading version information, code reading, code clearing, reading data stream, action testing, coding, matching, etc.
12. Supports VAG Guided Function for compatible with VW, AUDI, SKODA, SEAT (Step-by-Step Guide)
13. Supports Auto auth for FCA/SGW
14. 12-in-1 Live Data Monitor in Graphic, Autoscan
15. Multiple expansion modules support: endoscope, BST-360, oscilloscope, sensor, wifi printer, TPMS, X-prog3, remote generator etc
16. Supports 60 special functions such as maintenance light reset, throttle matching, steering angle reset, brake pad reset, tire pressure reset, etc.
17. Work with HDIII Heavy Duty to Test 24V Truck.(need extra truck module). It not only supports passenger car diagnosis but also supports commercial vehicle expansion.
18. 2 Years Free Software Subscription. later 1 year subscription is $899 (for both car and trucks)
19. Multi-language Supported: English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Hungarian, Finnish, Simplified, Czech, Turkish, Greek, Arabic, Danish Persian, Romanian, Serbian, Swedish, Simplified Chinese, Traditional Chinese.
Notice:
Global Version for Customers outside the UK and EU countries
UK/EU Version for UK/EU Countries customers
Launch X431 Pro3s Smartlink HD Functions:New CAN FD & DoIP Protocol Supporting (NO Need Adapter)
LAUNCH scanners are always connected with the needs of their customers.2024 Upgraded version of LAUNCH X431PRO3S Smartlink HD introduces new protocols CAN FD & DoIP to the vehicle diagnostic process for enhancing vehicle diagnostic speed and vehicle communication rate.
CAN FD standard in LAUNCH X431PRO3S Smartlink HD increases bit rate of up to 4 Mbit/s during payload transmission and processes greater quantities of diagnostic data, and saves both time and costs. compatible with GM Models including Onix 2020-2024, Tracker 2020-2024, Suburban 2021-2024, Tahoe 2021-2024, Montana 2024, Silverado 2024, Electra E5 2024, Escalade 2021-2024, Escalade ESV 2021-2024, Sierra 2024, Yukon 2021-202.2/2024, Yukon XL 2021-202.2/2024, and Chrysler Models including Grand Cherokee(WL) 2021-202.3, Grand Wagoneer 2022-2024.
DoIP allows your LAUNCH X431PRO3S Smartlink HD scanner to run a 100Mbit/s ultra-faster data transfer rates at a low hardware cost and achieve remote vehicle diagnostics capabilities in all ECUs connected to it. Compatible with BMW (F&G chassis), Volvo models (2018 later), Land Rover & Jaguar models (2017 later).
FCA Secure Gateway
LAUNCH X431 PRO3S SMARTLINK HD 2.0 automotive diagnostic scanner provides a trustworthy authority for technicians, car dealers, automotive engineers, and service shops to undo the SGW and perform all the necessary repair procedures.
Intuitive Topology Mapping
-Display each module’s status and the number of DTCs in one page
-Show real communication structure of all ECU module, easy to understand wiring schematics for cars
-Tap to enter the systems or modules with fault codes
-Zooming in and out to check the color coded modules
Visualizes the car systems with a diagrammatic tree, shows the system normal,faulty and not equipped by diagnosing the whole system.
Intuitive Use Topology Mapping show the structure of communication between modules,and checks all system conditions with One-Click
Locate the fault in a second show different health status in different colors
FCA AUTOAUTH :With the new version on LAUNCH X431 PRO3S SMARTLINK HD 2.0 , you will have access to the security gateway module on 2017 and newer Fiat/ Chrysler/ Dodge/ Jeep vehicles(2017-2024), so that the diagnostic tool can clear codes, run bi-directional active tests, actuations, relearns, ADAS calibration assistance etc.
DTC Help & Google Search: Just one click “DTC Help”or Code Search”after the DTC shows, save time by putting one by one.
12-In-1 Live Data Stream Graphing&Export Data as CSV/PDF File: Provides very detailed data stream data, it could include the change of Accelerator Pedal Position Sensor , Actual Output Shaft Speed , Clutch A Actuator Motor , Vehicle Battery and so on. Graphical data allows you to analyze the data changes of each module more clearly and easily, and it is easier to see the problems in it,CSV/PDF file allow you save the data,easy to record and track the vehicle performance.
Tons of Online Maintenance Resources: Including How-to Videos, operation skills, DTC Guidances, and user manual, Q&A, Quick start guide, etc,show you how to use diagnostic tool to solve common faults of some models, such as resetting BMW brake warning lights.
Remote Diagnosis &Feedback: When you encounter a complex car issue that is beyond your ability, you can easily get connected with an expert who is NOT physically present to help you fix it by using “Remote Diagnosis”. And if you have some difficulties or find some bugs during the use of this scan tool, you can send “Feedback” messages to LAUNCH technicians. They will handle the issues promptly.
Diagnostic Report Print&Share: With Launch X431 PRO3S SMARTLINK HD,you can generate a full system Diagnostic Report by ONE-CLICK. The reports can be emailed to the office or directly to your customer. You can also print out the vehicle health report card.
(PMI) Programmable Module Installation : LAUNCH X431 PRO3S SMARTLINK HD 2.0 Support PMI function, Compatible with Ford /Lincoin/ Mazda etc.This function is used when you need to replace a module (replace ECU) or initialize a module.No need using the J2534 or buying a subscription
V.A.G Guided Functions for Audi, Volkswagen Skoda and Seat,etc : On-Screen Instruction step by step , LAUNCH X431 PRO3S SMARTLINK HD 2.0 Automotive obd2 scanner guide you to be an expert in Car Diagnostics even you are a newbie. Thanks to this function , you don’t need to reply on a mechanic’s suggestion all the time.
Auto VIN Scan: 5 Ways for quick diagnose included 1)AUTO -VIN SCAN 2)CAMERA VIN 3)Manually Input VIN 4)Select Area and Vehicle- Automatic Detection 5)Select Area and Vehicle- Manual Selection
With ECU coding functions, LAUNCH X431 PRO3S Smartlink HD will improve vehicle performance, customize individual customization, refresh hidden functions, disable the annoying functions, reprograms the adaptive data for certain components after repairs or replacements, customized configurations for high-end models,etc to enhance fuel efficiency and ensure safe driving.
Online Coding: this LAUNCH scan tool can directly access the online vehicle repair data to do high-level repairs.
(1) Operate OEM programming without using the OEM tools
(2) Replace ECUs: program blank ECUs
(3) Write-in Data: refresh used ECUs
(4) Repair missing ECU information(5) Upgrade ECU software version
60 Kinds of Maintenance Functions (Vary By Car Model ,Year)
2.EPB Reset:Help replace and reset the brake pad.
3.BAT battery service(BMS):Clear the fault information of low battery and make it match again
4.D.P.F service
5. SAS Steering Angel Sensor Reset:Reset the steering angle to zero to keep the car running straight.
6. ABS Bleeding: Help exhaust the air.
7. Fuel Injector Coding: Write the new injector code into the car system for correct cylinder injection quantity.
8. TPMS service: Makes sense in displaying sensor IDs from the vehicle’s ECU, inputting TPMS sensor replacement IDs and testing sensors.
9. Throttle Adaptation: Initialize the throttle actuators to the default state.
10. AFS Headlamp Reset: Initialize the adaptive headlamp system.
11. Sunroof Initialization: The sunroof needs to be reset when the sunroof control unit have communication problem or changed.
12. Suspension Reset:Adjust the vehicle body height sensor for level calibration.
13. Gearbox Reset: Help complete the gearbox self-learning to improve gear shifting quality.
14. Gear Learning: Monitors certain camshaft position sensors signals.
15.Tire Reset:Set the size parameters of the modified or replaced tire.
16.A/F Reset:Set or learn Air/Fuel ratio parameters.
17.Adblue Reset(Diesel Engine Exhaust Gas Filter): Reset urea after the diesel exhaust treatment fluid is replaced or filled up.
18.Coolant Bleeding:Activate the electronic water pump.
19.Language Change:Change vehicle system language.
20.Nox Sensor Reset:Reset catalytic converter learned value stored in ECU.
21.Stop/Start Reset:Set up the automatic start-stop function in ECU
22.Seat Calibration:Calibrate the memory in replaced or repaired seats.
23.Transport Mode:Deactivate the transport mode.
24.Windows Calibration:Perform door window matching to recover ECU initial memory.
25.AC System Relearn/Initialization.
26.E.GR Reset.
27.Reset Fuel Trim .
28.Reset Fuel Alcohol Level.
29.High Voltage Battery Diagnostics.
30.GPF Regeneration.
31.Camshaft/Crankshaft Sensor Relearn
32. Interactive Vehicle Dynamics (IVD) Initialization Sequence.
33.Fuel Economy Test
34.Halt/Resume Transmission Adaptive Learning.
35.Passive Anti Theft System(PATS)Functions.
36.Relearn Vehicle Data.38.Initialisation Of Automatic Tailgate .
37. Initialise Power Window Regulators;
38. Seat Standardisation
39.Normalise Slide/ Tilt Sunroof;
40.Activate Contactless Vehicle Access
41.Power-Down Command
42.Autoaddressing Ambient Light BDC.
43.Unlocking Auxiliary Heater
44.Drain/ Fill The Refrigerant Circuit
45.Installation Position Of Flap Motors ;
46.ETS Test Of Lithium lon Battery;
47.Register Battery Exchange
48.Reset Adaptation Values
49.Adjusting The Electromotive Throttle Controller;
50.Injection Quantity Compensation;
51.Open And Close Radiator Blind;
52.Activate/Deactivate Workshop Mode ;
53.Start-Up For Brake Pedal Travel Sensor .etc.
….
Expandied Functions:
1. X431 VSP-600 Videoscope (For inspection of hidden and narrow parts of the engine, fuel tank, brake system, etc.)
2. X431 TSGUN (You can use it not only to activate the sensor ID, tire pressure, sensor frequency, tire temperature and battery status; you can also program sensor data to a blank LAUNCH branded sensor in three ways: automatically, manually and by activating a copy; at the same time, you can write the newly programmed sensor ID to the vehicle ECU.)
3. X431 X-PROG 3 (IMMO For V.A.G Group Above 3.5,advanced immobilizer and key programmer) Vehicles that require a clone key are not compatible with this accessory.
4. X431 Heavy Duty Module -LAUNCH HDIII or SmartLink HD 2.0 add-on module is an essential truck module which can turn your X431 scan tools into full function heavy duty truck diagnostic tools,working on both heavy-duty(Class 4 through 8) and medium-duty trucks(Such as heavy trucks, city buses, bulldozers, excavators, etc.)
5. X431 ADAS Mobile/ADAS PRO -Compatible with LAUNCH X431 ADAS Mobile to calibrate advanced driver-assistance systems, such as ACC, AEB, and more. ADAS Calibrate a wide range of camera-based & radar-based driver assistance systems, Operate ADAS calibration to vehicle cameras, LKA system, ACC system, LDW system, and AVM system. ADAS is designed to improve driver, passenger and pedestrian safety by reducing both the severity and overall number of motor vehicle accidents. ADAS can warn drivers of potential dangers, intervene to help the driver remain in control in order to prevent an accident and, if necessary, reduce the severity of an accident if it can’t be avoided.
6. X431 WiFi Printer (Print out diagnostic data/ reports.)
7.X431 BST360 battery test (For Battery Cranking system Test, Battery Charging system Test, Battery Health Test)
8. EV diagnostic kit: New Energy Battery Pack perform battery pack analysis
9. IMMO Software Package: advanced immo key programming with x-prog3
10.S2-2 Multimeter
11.S2-2 Sensorbox
Launch X431 SmartLink C Highlights:
1. Update Version of Launch X431 HD III: The transmission speed is faster and more stable, and the visual operation interface makes it more convenient.
2. Support Bluetooth, Wi-Fi, USB and other communication methods.
3. Can be used with Launch X431 V , X-431 PRO3S and X431 PRO5 series.
4. Support full system fault diagnosis, with functions such as code reading, code clearing, data stream reading, special functions, and action test.
5. Support commercial vehicles, passenger vehicles, new energy and other models: Covering Cummins, Bosch, Weichai, Shangchai, Yuchai, Xichai, Chaochai, Yangchai, Quanchai and other engine diagnostic software, it supports trucks, buses, construction machinery, agricultural machinery, trailers, ships and other types of vehicle software.
6. Support super remote diagnosis.
NOTE: The SmartLink C HD does not work with Pro5/PAD V/PAD VII (they work with extra Heavy Duty Truck Software and Adapters)
Compared with X-431 HDIII, the SmartLink C 2.0 is more powerful in function.
The transmission speed is faster and more stable.
The visual operation interface makes it more convenient.
It supports commercial vehicles, passenger vehicles, new energy and other models.
It supports super remote diagnosis.
Launch X431 Pro3S Smartlink HD Vehicle Coverage
This LAUNCH diagnostic tool has expend vehicle coverage, being well-matched with over 99% of popular cars from America, Europe, and Asia, even the most recent models till 2024. COMPATIBLE WITH CARS/ TRUCKS/ BUSES/ TRAILERS/ EXCAVATORS/ DIESEL ENGINE/ CONSTRUCTION MACHINERY/ PICK-UP/ HYBRID VEHICLE,etc.
Passenger cars ( Gasoline and Diesel)
– European car
for ABARTH, for ALFA ROMEO, for AUDI, for BENTLEY, for BMW, for BUGATTI, for CITROEN, for DACIA, for EUROFORD, for FERRARI, for FIAT
, for GAZ, for OPEL(SOUTHAFRICA), for IVECO, for JAGUAR, for LAMBORGHINI, for LANCIA, for LANDROVE, for MASERATI, for MAYBACH, for MERCEDES, for MINI, for OPEL, for PEUGEOT, for PORSCHE, for RENAULT, for ROLLSROYCE, for ROVER, for SAAB, for SEAT, for SKODA, for SMART, for SPRINTER, for SPRINTER, for VAUXHALL, for VAZ, for VOLVO, for VW…
-USA Car
for BUICK, for CADILLAC, for CHEVROLET, for CHRYSLER, for DODGE, for FIAT(BRAZIL), for FORD, for FORD(AUSTRALIA), for GM, for JEEP, for LINCOLI…
– Asian cars
for ACURA, for DAEWOO, for DAIHATSU, for HM, for HOLDEN(AUSTRALIA), for HONDA, for HYUNDAI, for IKCO, for INFINITI, for ISUZU, for KIA, for LEXUS, for LUXGEN, for MAHINDRA, for MAHINDRA(INDIAN), for MARUTI, for MARUTI(INDIAN), for MAZDA, for MITSUBISHI, for NISSAN, for GTR(NISSAN, for PERODUA, for PERODUA(MALAYSIA, for PROTON, for PROTON(MALAYSIA, for SAMSUNG, for SAIPA, for SSANGYONG, for SUBARU, for SUZUKI, for TATA, for TATA(INDIAN, for TLISUZU, for TOYOTA, for UNITED PAKISTAN…
– Chinese cars
for BRILLIANCE, for BYD, for CHANGA, for CHANGHE, for CHBUICK, for CHERY, for CHANGHE SUZUKI, for DFCIROEN, for ECUAID, for FAW(TIANJIN, for FOTON, for GONOW, for GWM, for HAFEI, for HAIMA, for JAC, for JIANGHUAI, for JMC, for JOYLONG, for LIFAN, for MG(SAIC, for QOROS, for MAXUS, for SPARK, for TOYOTA(CHINA, for VENUCIA, for WULING, for XINKAI, for POLARSUN, for ZX AUTO, for ZOTYE…
Commercial vehicles
– Truck
, for MERCEDESBENZ, for CREDO, for DAF, for DFL, for ERF, for FAW, for FORD, for FOTON, for FREIGHTLINER, for BREMACH, for FUSO, for ASHOK LEY LAMD, for HD-DEMO, for HINO, for HYUNDAI, for INTERNATIONAL, for IRIS BUS, for ISUZU, for IVECO, for JAC, for JMC, for KENWORTH, for MACK, for MAN, for RENAULT, for SCANIA, for SINOTRUK, for STERLING, for TATA, for UD, for VOLVO, for WESTERN STAR, for MAXXFORCE, for JOHN DEER, for BENDIX…
– BUS
for MERCEDESBENZ, for BONLUCK, for GOLDENDRAGON, for ASHOK-LEY LAND, for DEMO, for HIGER, for HINO, for HYUNDAI, for IRIZAR, for ISUZU, for MAN, for NEOPLAN, for RENAULT, for SETRA, for SITCAR, for SUNLONG, for SUNWIN, for VOLVO, for ZHONGTONG…
– Engineering vehicle
for MERCEDESBENZ, for CATERPILLAR, for DEMO, for MACHINERY, for HINO, for ISUZU, for VOLVO…
accelerate diagnostic speed;Android 10.0 OS
Easy to use and Keeps a smooth diagnostic operation
10.1-inch TFT-LCD with 1280 x 800 resolution & capacitive touch screen;
5G&2.4GHz Dual Wifi:Communication automatically connects about 33ft;
Built-in 8MP rear camera ;180°Adjustable stand for hands-free operation
Package Includes:
Additional information
Weight | 12 kg |
---|
