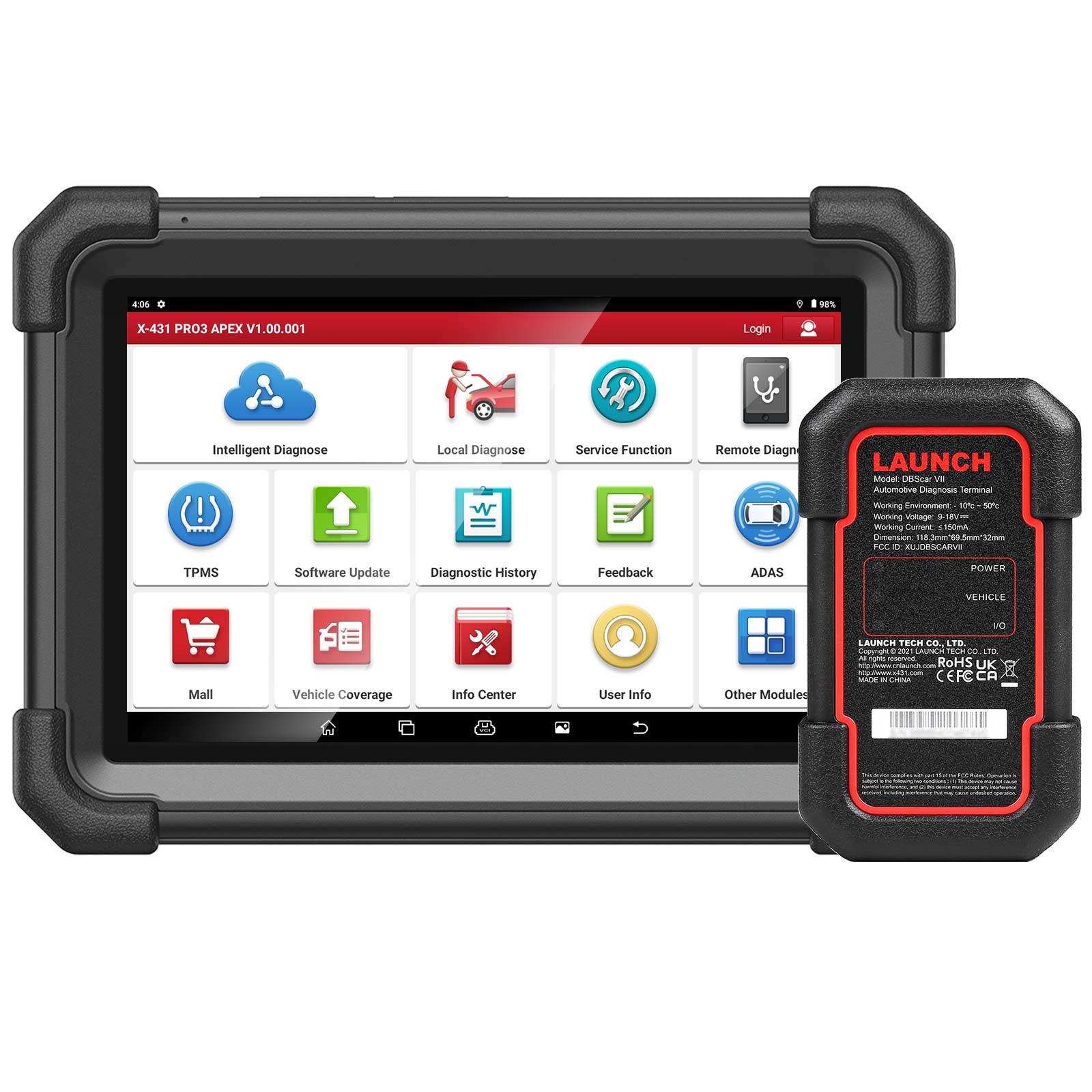

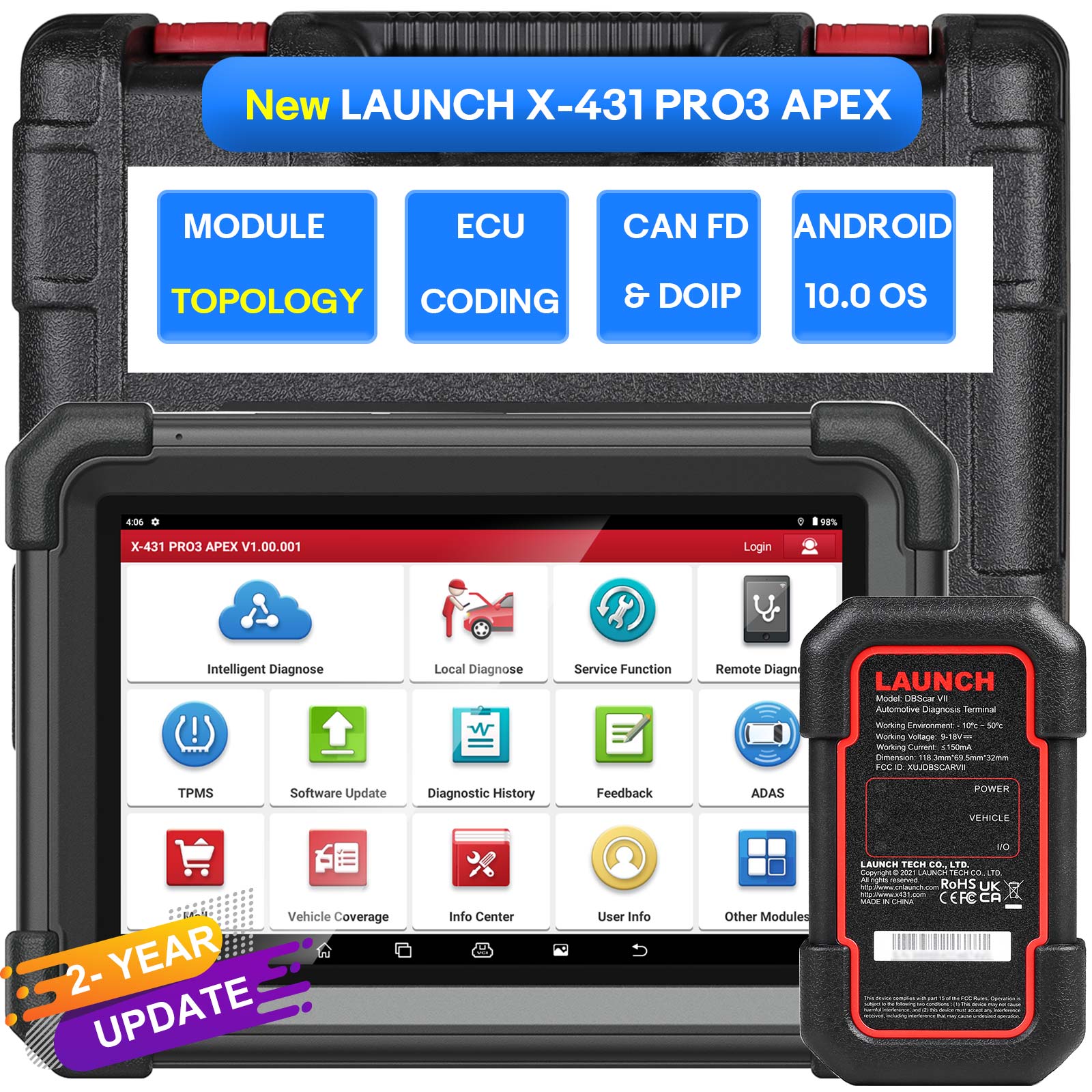

LAUNCH X-431 PRO3 APEX Automotive Diagnostic Tool with 37 Special Functions Fast and Accurate Diagnoses TPMS Function Online Coding

SKU: SP482
In Stock
$840.00$880.00
Clear
SKU: SP482 Category:

Description

LAUNCH X431 PRO3 APEX All-System Diagnostic Scan Tool for Mechanics Online Coding, Topology Map, CAN FD & DoIP, 37 Services

LAUNCH X431 PRO3 APEX is a New Generation of Repair Master for Global Vehicles, it’s an upgraded version of X431 V  and a new member of the X431 scan tool.
* LAUNCH X431 PRO3 APEX obd2 scanner diagnostic tool has inherited all the strengths of the X431 V scanner. LAUNCH’s deep research developed new functions to enhance LAUNCH X431 PRO3 APEX’s diagnostic capacities and add more advanced features: topology mapping, 37 services, online/offline ECU coding, PMI functions for Lincoln & Mazda, etc.

Highlight:

  • Upgrade ver. of X431 V  scan tool
  • Global Version, No IP restriction
  • 2 Years Updates, after that Check here for 1 Year update service,  2 Years update service.
  • √ 1280*800 Resolution √ 6300mAh Battery √ 8MP Rear Camera √ 10-inch Touchscreen.
  • Android 10.0 OS keeps stable & faster data transfer and vehicle diagnostics.
  • Updated DBSCar VII VCICAN FD & DoIP compliant, and BT & USB dual connection supported.
  • Enlarge 1996-2024 vehicle coverage (CAN FD & DoIP, FCA & Renault SGW access, HD truck diagnostics, etc).
  • Newly introduced “Intelligent software updating”. To adapt to increasing diagnostic problems and customers’ repair needs.
  • 2.4 & 5 GHz Dual WiFi, 4GB 64GB Memory stores more diagnostic data. 2.0GHz 4-Core CPU goes smooth multi-task dealing.
  • Adds more advanced features: topology mapping, 37 services, online/offline ECU coding, PMI functions for Lincoln & Mazda, etc.
  • Newly developed topology map can directly access all systems, check module communication status, and mark DTCs to locate problems at an average of <5 minutes.
  • 25 Language Support: English, German, Spanish, French, Traditional Chinese, Japanese, Polish language, Portuguese, Russian, Korean, Dutch, Swedish, etc. You can quickly change language settings by yourself, no need to message post-sale help.
  • Can Work With LAUNCH X431 DoIP 16Pin Cable Which is Compatible With DBScar VII Scanner Such as CRP919X BT/ CRP919E BT/ Pro3 APEX/ ProS V5.0, With this cable, your device DBScar VII could work with Doip protocols cars such as BMW, Mercedes Benz, Land Rover, Lingke, and Volvo, it will be faster and more stable



LAUNCH X431 PRO3 APEX Added Functions, More Extended Functions Make Work Easier (need to buy extra):

  1.  X431 ADAS Moblie/ ADAS PRO: Calibrate a wide range of camera-based & radar-based driver assistance systems (please contact seller)
  2.  X431 PROG-3 Key Matching: IMMO For VAG Group Above 3.5, Vehicles that require cloning are not compatible with this accessory.
  3.  X431 Printer: Print out diagnostic data/ reports.
  4.  Launch VSP-600 Video Scope: Check unseen parts and give you a direct image of the engine, gears, compressors, headers and valves, and body components.
  5.  X431 TSGUN: Not only can you use it to activate the sensor’s ID, tire pressure, sensor frequency, tire temperature, and battery status; you can also program sensor data to a blank LAUNCH brand sensor in three ways: Auto, Manual, and Activation Copy; at the same time, you It can be used to write the newly programmed sensor ID to the vehicle ECU.
  6.  LAUNCH X431 O2-2 Oscilloscope Scopebox and Launch X-431 Sensorbox S2-2.
  7.  BST360 battery tester.: For Battery Cranking system Test, Battery Charging system Test, Battery Health Test.
  8.  Heavy Duty Module: Upgrade version of Launch HD III heavy Duty Module

LAUNCH X431 PRO3 APEX expand tools

New Advantageous Functions:

  • New Topology Mapping: Intuitively present vehicle communication status & and problem location. Effectively increase 5x faster
  • New CAN FD & DoIP: Communicate with more vehicles at a higher diagnostic speed and data transfer.
  • New Guided Functions: Provide corresponding tips, auto log-in services, matching, setting, and coding instructions.
  • New FCA SGW Vehicles: Provide secure access to perform more diagnostics without gateway limitation.
  • New 24V Heavy Duty Truck Support: Work with X431 HD3 module to diagnose heavy-duty vehicles & and commercial cars.

Comprehensive Diagnostic Functions:

  • 37 Reset Functions: Operate various module reset / relearn / adaptation/calibration after repair and recovering functionality.
  • OE-Level System Diagnostics: Perform the same diagnostic process as the OEM scanner to scan all the system faults.
  • Bi-directional Control: Operate active tests to quickly pinpoint problems and improve diagnostic efficiency.
  • Online Coding: Access the online data from the OEM server.
  • Component Matching: Match the new ECUs after replacement.
  • Customization: Customize the preset function to the audience’s needs.
  • Enhanced Hardware Configuration. Any problems with LAUNCH X431 PRO3 APEX, you can message us. (sales@x431tool.com)

LAUNCH Intelligent Solutions, One-Stop Solve Complex Vehicle Problems

  1. Topology Mapping with Clearer DTC Display: This is the first application of topology mapping in automotive diagnostics. On the visual side, the LAUNCH X431 PRO3 APEX diagnostic scan tool displays all the vehicle system health states in different colors and the communication between modules. As to the utility, it can quickly tell the mechanics how many fault codes each system has to solve.
  2. Repair Information Center Guides Easy Maintenance: Same as Snap-on tools, the LAUNCH team invests great development in integrating repair information to help global users obtain valuable diagnostic information and reduce the repair difficulty, including Operation Tips, DTC Help, Technology Handbook, Product Manual, FAQ, etc
  3. 12-in-1 Live Data Graph: LAUNCH X431 PRO3 APEX automotive scanner can display 12-in-1 live data in a graph to help mechanics intuitively monitor vehicle status and accurately analyze/diagnose vehicle problems. All the diagnostic data can be well stored/ recorded/ played back/ viewed.
  4. Diagnostic Report: The LAUNCH car diagnostic scanner can automatically generate diagnostic reports and be stored in diagnostic history. You can self-serve download/print/and share these reports whenever you want! If you need some repair help, you can attach the diagnostic reports to your message/diagnostic feedback and help our professional technicians locate the problem’s causes.
  5. Remote Diagnostics: No need Team Viewer, this LAUNCH self-developed remote diagnostics technology supports both super remote diagnostics (LAUNCH Scanner with LAUNCH Scanner & LAUNCH Scanner with PC) and WEB remote diagnostics, which aims to help repair shops or technicians launch instant messaging and remote repair, making the job get fixed faster.
  6. Online Diagnostic Feedback: This function allows you to submit your diagnostic problems to the LAUNCH team for professional analysis and troubleshooting and timely get repair solutions.
  7. 25 Language Support: English, German, Spanish, French, Traditional Chinese, Japanese, Polish language, Portuguese, Russian, Korean, Dutch, Swedish, etc. You can quickly change language settings by yourself, no need to message post-sale help.

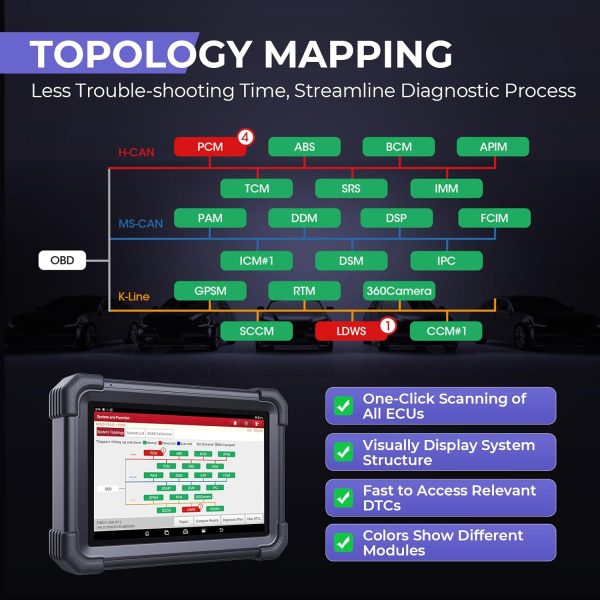

LAUNCH X431 PRO3 APEX topology mapping

LAUNCH X431 PRO3 APEX: LAUNCH Diagnostic Toll with Coding Functions Meet Maximum Personalized Needs

Compared with other diagnostic scanners, LAUNCH X431 PRO3 APEX automotive scanner ECU coding functions feature more nature: larger vehicle coverage, no-fee function supports, higher diagnostic accuracy, more complete code data, accessible OEM data, etc.

1. ECU Coding

  • Refers to updating existing code in the ECU with specific values or parameters.
  • Rewrite the code to match the replaced component after repair or replacement.
  • Modify codes to activate preset functions as customers’ needs.
  • Online coding for automatically getting code data from the cloud server.
  • For Ford, Mazda, Jaguar, Vauxhall, Opel, Benz, BMW, Audi, Porsche, VW, Nissan, Infiniti, Hyundai, etc.

2. Flash Hidden Functions
Apply to personalize/customize preset functions: mirrors automatic folding and unfolding; seat belt beep sounds; the brightness of the dashboard; acoustic pedestrian protection; air conditioning setting memory; etc.

3. Easy ECU Coding Process
Online Coding – Download Code Data – Automatically Code Adaptive Data – Clear DTCs (Note: Detailed Operating Steps Vary by Models.)

LAUNCH X431 PRO3 APEX ecu coding

Global Vehicle Coverage: 160 Brands HD Truck Diagnostics FCA & Renault SGW Vehicles

2023 LAUNCH X431 PRO3 APEX tools for mechanics cover 99% of vehicles and include 160 brands & and 100000 models on the road. Power by enhanced software configuration, this LAUNCH X431 PRO3 APEX scan tool for all vehicles provides perfect solutions to incompatible vehicle models, non-supported vehicle protocols, limited gateway, etc.

  • CAN FD & DoIP: CAN FD empowers data transfer to be faster and improves diagnostic efficiency for newer 2024-year vehicles. Unlike other scanners, LAUNCH DBScar VII VCI provides a stable CAN FD connection without buying extra CAN FD cables. Another DoIP support even improves 300-400 times quicker work efficiency. (Note: Buying additional DoIP cables is needed.)
  • FCA SGW Access: For the 2018 FCA vehicles (Fiat, Chrysler, Jeep, Alfa Romeo, etc.) equipped with the Security Gateway module, the LAUNCH X431 PRO3 APEX car scanner can help you log in to the FCA account and perform diagnostic functions such as clearing DTCs, bi-directional tests, and calibrations.
  • Renault SGW Access: Serve 2019 Renault SGW vehicles include CLIO V, CAPTUR II, CAPTUR II CN, MEGANE IV ph2, ESPACE V ph2, TALISMAN/SM6 ph2, NEW ZOE, ARKANA CN, XM3/NEW ARKANA, NEW SANDERO/LOGAN, etc. Unlocking security gateway to perform service function, active test, coding, programming, etc. (Note: We provide FCA & Renault operation guidance. You can message our post-sale team if needed.)
  • 1996-2023 Vehicles: Work well with global main vehicles from 1996-2023. [America] Ford, Lincoln, Chrysler, Dodge, GM, Cadillac, Chevrolet, Buick, GMC, etc. [Europe] VW, Seat, Skoda, Peugeot, Citroen, Renault, Volvo, Vauxhall, Smart, Saab, Porsche, Mini, Lancia, BMW, Jaguar, Fiat, Citroen, Benz, Bentley, Audi, etc. [Asia] Acura, Lexus, Suzuki, Subaru, Mitsubishi, Mazda, Kia, Isuzu, Infiniti, Hyundai, Honda, Daihatsu, Daewoo, etc.
  • New DC 9~36 V & 24V HD Truck Diagnostics: LAUNCH X431 scanner can work with X-431 HD III Heavy Duty Module (sold separately) to extend stable & high-speed diagnostics for heavy-duty vehicles: Benz, Man, Volvo, Daf, Scania, Iveco, Renault, Freightliner, International, Kenworth, Peterbilt, Sterling, Western Star, Mack, Fuso, Isuzu, UD, etc.
  • Vehicle Coverage Check: LAUNCH X431 scan tool provides a ‘Vehicle Coverage Check’ function that you can check if the coverage (models, diagnostic systems, functions, etc.) will work for your car before operating diagnostics, thus reducing unnecessary waste of time and effort.

LAUNCH X431 PRO3 APEX 160 car support

37 Reset Functions for 160 Vehicle Coverage
Compared to high-end diagnostic tools in the same price range, the LAUNCH X431 PRO3 APEX OBD scanner holds more diagnostic functions than other brands and keeps updating for newer functions & and coverage. 37 maintenance functions involve all aspects of Reset/Relearn/Match/Calibration to 99% of vehicles.

  • Oil Reset: Reset the oil life system and turn off the oil light to start a new cycle.
  • EPB Reset: Reset the calipers, brake discs, or pads after replacing the electronic parking brake system.
  • TPMS Reset: Reset the tire pressure system and turn off the MIL light.
  • BMS Reset: Re-match the battery module and motoring sensor.
  • IMMO Reset: Disable the lost keys and add new keys
  • Throttle Matching: Initialize the throttle actuators to the default situation.
  • Windows Calibration: Perform door window matching to recover ECU’s original mode.
  • Seat Calibration: Calibrate the memory in replaced or repaired seats.
  • Lang Change: Change the instrument displaying language.
  • Headlamp: Initialize the adaptive headlamp system.
  • Injector Coding: Code the injector after replacing or adjusting it to correct the fuel injection volume of each cylinder more accurately.
  • Steering Angle Reset: Reset the steering angle to zero to keep the car running straight.
  • Sunroof Reset: Reset sunroof locking & closing, closing on rainy days, slide/tilt sunroof memory function, outside temperature threshold, etc.

Note: *Explore more maintenance functions by accessing menus of “Vehicle Brand – Car System – Car Module – Service Functions”. Available functions vary by model, make, year, etc. You can check the compatibility by messaging us.

LAUNCH X431 PRO3 APEX 37 maintenance function

Programmable Module Installation
LAUNCH X431 PRO3 APEX automotive tools for mechanics feature PMI (programmable module installation) functions that can be used to replace or initialize a new/used module when you need to copy the data from the original module and install it to the new unit to finish the module replacement.

VAG Guided Functions
Differentiating from traditional diagnostics, LAUNCH diagnostic tool equipped with guided functions, provides OE-level operating instruction for diagnostic reference and simplifies complicated diagnostics. Targeted on different car models and configurations, there is related operation guidance that provides corresponding tips, auto log-in, matching, setting, and coding.

IMMO Programming
LAUNCH X431 PRO3 APEX scanner can perform the anti-theft key matching for the following cases: reset IMMO ECU, add new keys, delete key data, match remote control, etc. When working with X431 PROG-3 (sold separately), this programming tool, read-write, EEPROM, MCU, and EEPROM/FLASH data of vehicle engine/gearbox ECU.

Bi-directional Control
The LAUNCH bidirectional scan tool can send the commands to all ECUs and conduct mutual control with the vehicle sub-systems & components to quickly pinpoint the problems, saving you from messy vehicle diagnostics and shortening diagnostic time. The active test usually functions on all systems such as headlamps, windscreen wipers, windows & doors, sunroofs, mirrors, etc.



Why Choose Launch X-431 PRO3 APEX?
1. The host has a higher version system, larger storage, and longer battery life, making diagnosis faster, more stable, and more durable.
2. Upgraded to DBSCAR VII diagnostic connector, supports CANFD and DOIP.
3. Wide car model coverage, strong diagnostic function, supports full system diagnosis of all car models.
4. Support reading version information, code reading, code clearing, reading data stream, action testing, coding, matching, etc.
5. Support Volkswagen Audi guidance function
6. Supports tire pressure activation, programming, learning and detection functions with a tire pressure gun
7. Supports functions such as IMMO programming with X-PROG 3
8. Support multiple modules expansion : endoscope, BST-360, oscilloscope, sensor, wifi printer
9. Supports 37 special functions such as maintenance light reset, throttle matching, steering angle reset, brake pad reset, tire pressure reset, etc.
10. Support VIN code intelligent identification function to quickly enter diagnosis
11. Diagnosis is fast and accurate

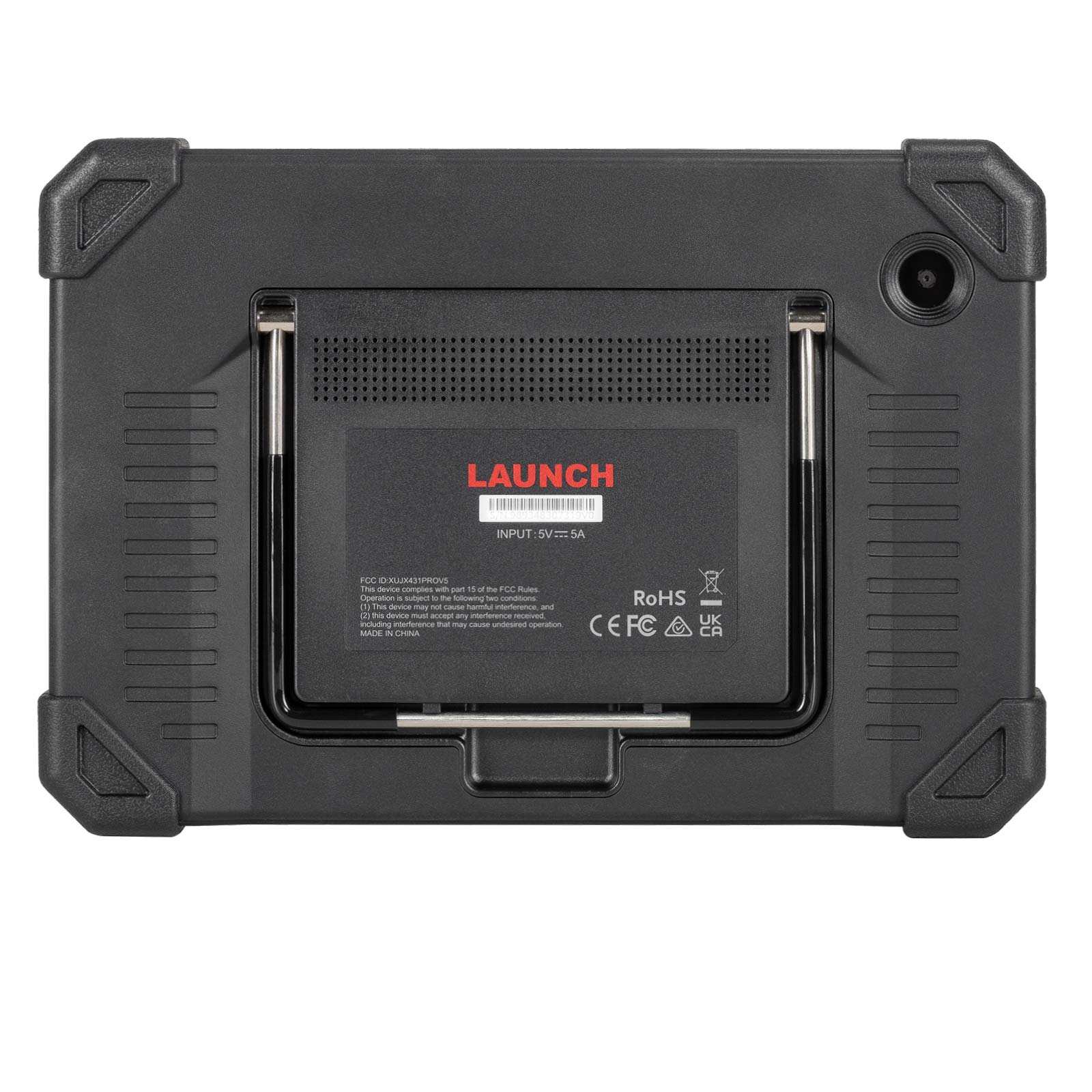

Product Specifications of the Tablet:

Processor:                          2.0GHz 4 core
Operating system:              Android 10.0
Memory:                             4GB
Storage:                              64GB
Battery:                               47880mWh (7.6 V, 6300mAh)
Display:                              10.1 inches 1280*800
Camera:                              rear 8 million pixels
WIFI:                                    2.4GHz/5GHz (dual band)
Interface:                              TYPE A *1 &TYPE C*1
Working temperature:          0~50℃
Size:                                     274*190.5*40.5mm

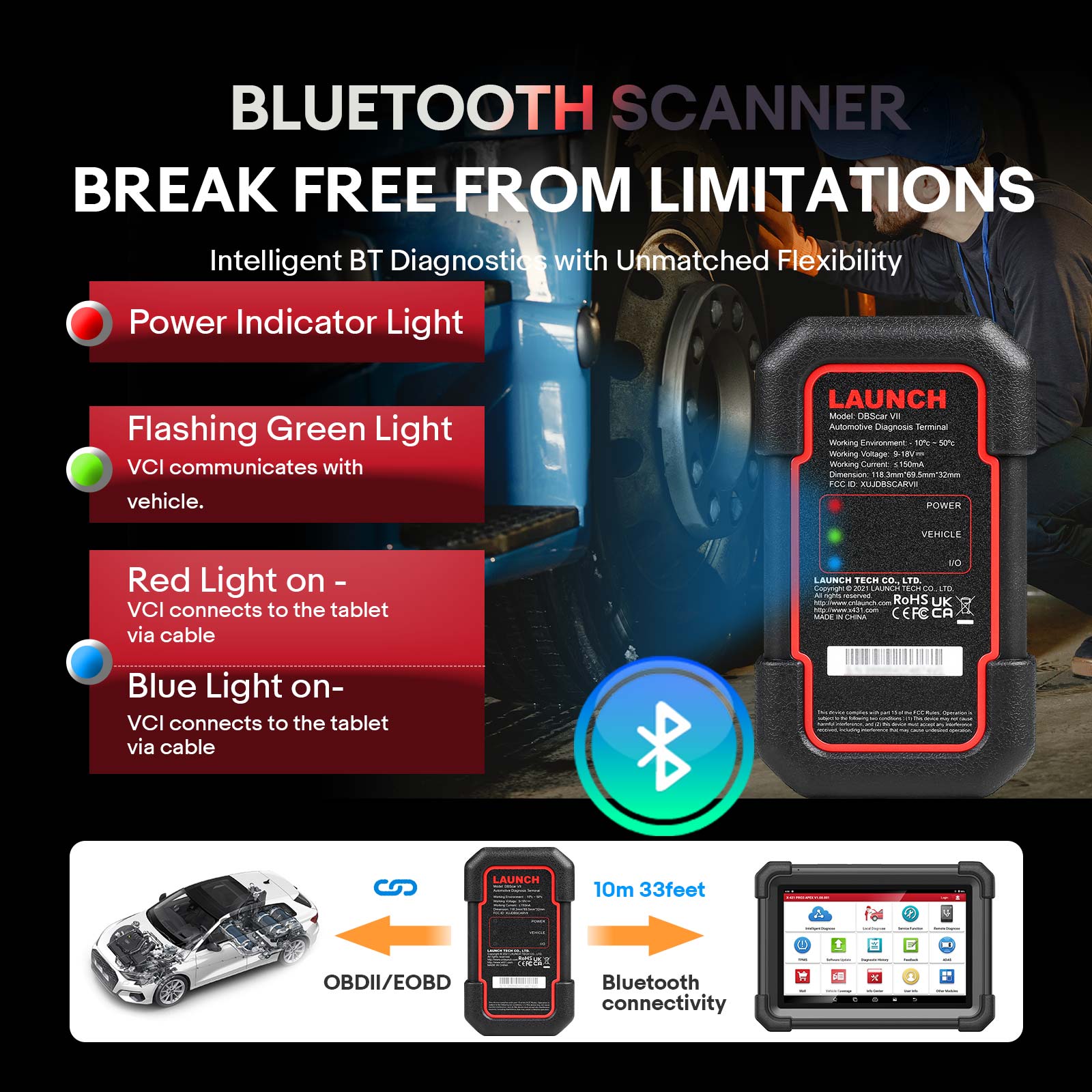

Product Specifications of the DBScar VII Connector:

Working voltage:                  DC 9~18V
Communication method:      Bluetooth
Working temperature:           -10~50℃
Size:                                    118.3*69.5* 32 (mm)
Power supply:                When the VCI diagnostic connector is connected to the vehicle OBD II diagnostic socket, the indicator light will light up.
Vehicle:                          When the VCI diagnostic connector is communicating with the vehicle ECU, the indicator light will flash.
IO:                                 1. When the VCI diagnostic connector communicates with the diagnostic host via Bluetooth, the indicator light displays blue.

                                      2. When the VCI diagnostic connector communicates with the diagnostic host via USB, the indicator light turns red.

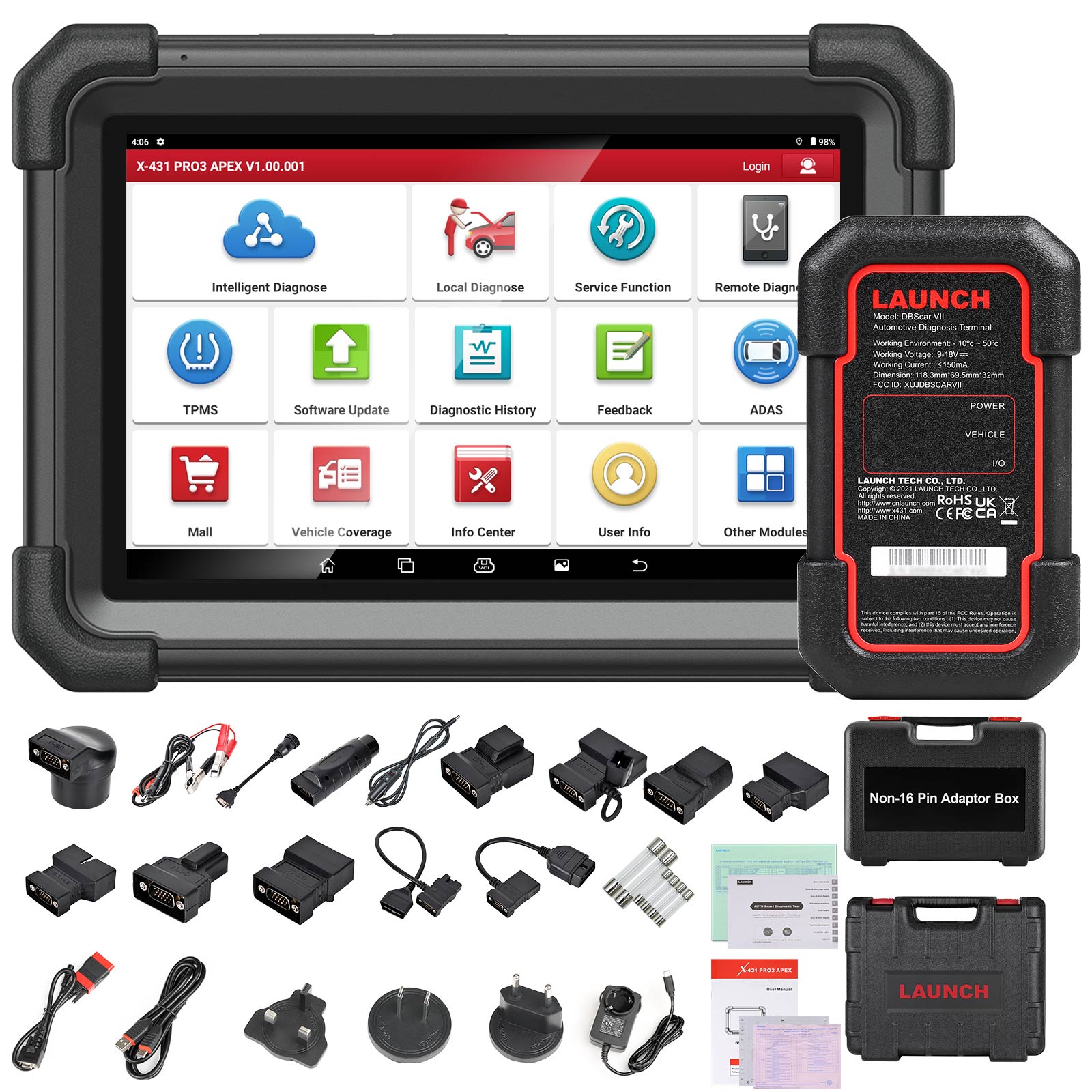

LAUNCH X431 PRO3 APEX Package includes:

1pc x Launch X-431 PRO3 APEX Tablet
1pc x DBScar VII Connector
1pc x benz-30 diagnostic joint
1pc x Nissan-14 16 diagnostic connector
1pc x benz-14 diagnostic connector
1pc x bmw-20 diagnostic connector
1pc x chrysler-6 diagnostic connector
1pc x ford-6 1 diagnostic connector
1pc x gm/vaz-12 diagnostic connector
1pc x honda-3 diagnostic connector
1pc x kia-20 diagnostic connector
1pc x mitsubishi/hyundai-12 16 diagnostic connector
1pc x toyota-17 diagnostic connector
1pc x toyota-22 diagnostic connector
1pc x hd15f to obd216 male connector
1pc x hdb15f to hbd15f test main line
1pc x double clamp power line
1pc x cigarette lighter line
1pc x British standard conversion head
1pc x European gauge conversion head
1pc x power adapter
1pc x type A to type C data cable
4pcs x clipper fuse 5*20mm
2pcs x lighter fuse 6*30mm
1pc x universal pin envelope
1pc x manual
1pc x quick start

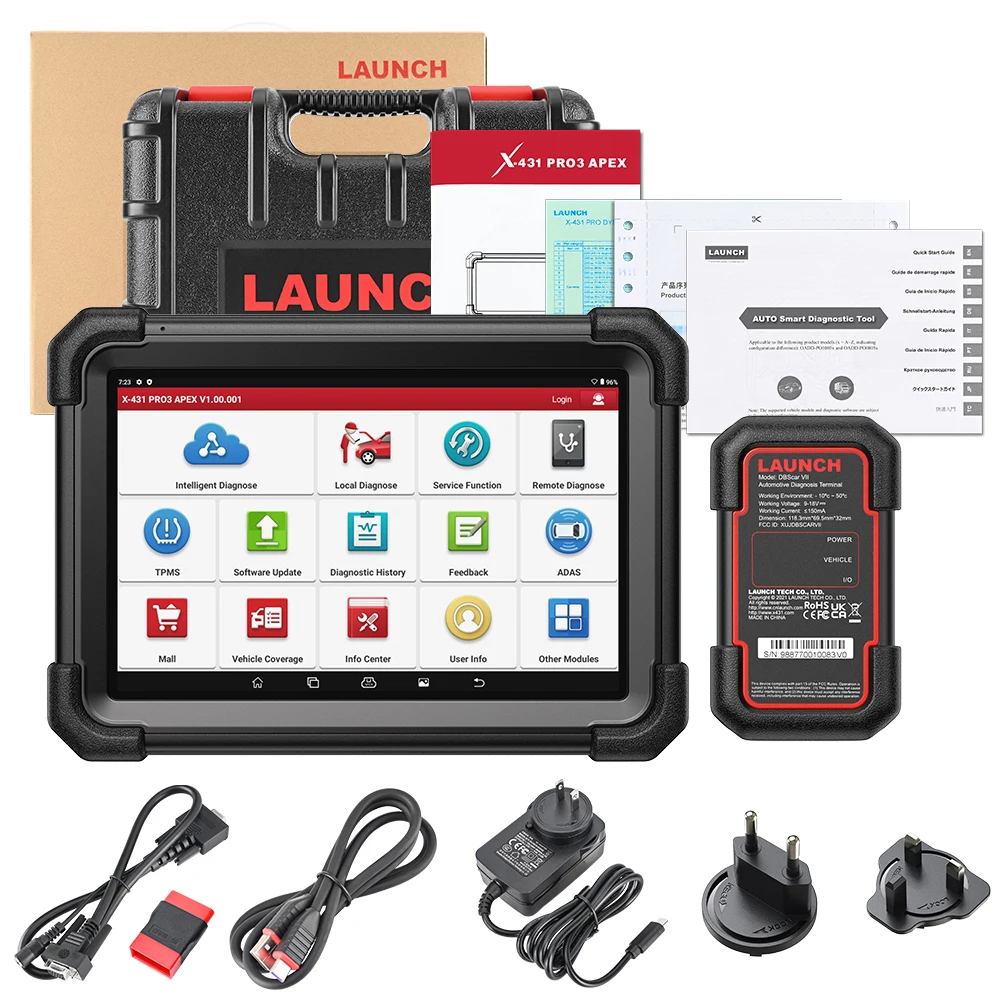

PRO3 APEX package


Additional information

Weight 10 kg
Version

EU/UK Version, Global Version
