Launch X431 GIII X-PROG 3 Advanced Immobilizer & Key Programmer Compatible with X431 V/X431 V+/Pros/PRO3S+/Pro5/PAD VII

Description

Launch X431 GIII X-PROG 3 Advanced Immobilizer & Key Programmer XPROG 3 Chip Reader

X-PROG 3 advanced immobilizer & key programmer is a powerful chip reading device that can read/write keys to the vehicle. Compatible with X-431 series diagnostic scanners, X-PROG 3 enables Anti-theft type identification, Remote control matching, Key chip reading & matching, anti-theft password reading and anti-theft component replacement.

X-431 GIII X-PROG 3 Highlights:

*** LAUNCH Official authorized dealer, 100% original

1. All-in-One Key Programmer. Integrates Multiple Function Models.
2. Reads & Writes Most Engine/ Gearbox ECUs Without Disassembling the Shell
3. Compatible with Multiple X-431 Series Diagnostic Tablet: X431 Pros Star, Pros Elite, PRO ELITE, Pro3 V5.0 (V V5.0), PROS V5.0,  Pro3S V5.0, LAUNCH PRO5, PRO TT, PRO3 ACE, PRO DYNO, PRO3 APEX, PAD II, PAD V, PAD VII, PAD V (PAD V ELITE), PAD VII ELITE, Immo PAD, Immo Pro, Immo Plus, Immo Elite, X-DIAG Pro3 etc.
*X431 V/ V 1.0-4.0/ Pros v1.0 with X-PROG3 CAN NOT ADD extra IMMO software. Please check here for more information.
*Only the NEWEST version can support with X-PROG3 ADD extra IMMO software, such as X431 Pro3 V5.0 (V V5.0), PROS V5.0,  Pro3S V5.0, X431 V V5.0 and etc.

4. Supports VW/ AUDI MQB Platform Engine ECU Replacement or Cloning (Read engine ECU data directly from the key).
5. Works with Reprogramming Device to Backup/ Restore Programming Data (For Bosch/Siemens engine ECU).
6. Enables Reading/ Writing EEPROM, On-Board MCU and BMW CAS4 / FEM Chips, Mercedes-Benz Infrared Keys, Generating Special Keys, Reading BMW Engine ISN Code.
7. The IMMO LICENSE please check here.
8. NEW!!! Update VAG MQB NEC35XX D70F3524, D70F3525, D70F3526, D70F3529, D70F3532, D70F3537 add key & all keys lost
9. NOTE: If you try to update key programming software and firmware on Launch X431 IMMO Plus/ Elite/ PAD V/ PAD VII, you must connect this key programmer with tablet, otherwise it will give error device no response.

Launch GIII X-Prog 3 Features:

1. Compatible with X-431 series diagnostic scanners, X-PROG 3 enables reading/ writing EEPROM, on-board MCU and BMW CAS4 /FEM chips, Mercedes-Benz infrared keys, generating special keys, reading BMW engine ISN code.
2. Supported brands: VW, AUDI, SKODA, SEAT, BMW, MERCEDES-BENZ, TOYOTA, etc. More models continue to be updated.

• Read/write for BMW CAS4 and FEM chips
• Reading and writing car key chip
• Read for BMW engine ISN code
• Read/write EEPROM MCU….

3. Supported systems: Automatic Transmission, Instrument System, CAS, Body System, Lock System, etc.
4. Compatible with: PRO ELITE/ PROS ELITE, X-431 V, X-431 V , X-431 PAD V, X-431 PAD VII, X431 PRO5, X431 PRO3S V5.0, X431 Pro3 Apex, Immo PAD, Immo Pro, Immo Plus, Immo Elite, X-DIAG Pro3 etc.
5. Reads & writes most Engine/ Gearbox ECUs without disassembling the shell

How To Update Launch X431 G3 Software?

The Launch X431 GIII Software Update function keeps your diagnostic software & app up-to-date, you can also use it to customize your frequently used software. As a powerful chip reading and writing device, it’s compatible with most X431 series tablets like X-431 V V5.0, X-431 PAD V, X-431 PAD VII, X431 PRO5, etc.

*X-PROG3 will connect PAD VII/PAD V/Pro5 and IMMO series (IMMO Pro/IMMO Elite/IMMO Plus) via USB, for other X431 tablets, only Bluetooth or WiFi connection.
*To clone ECU or TCU with X-PROG3, you need PAD series or IMMO tablet series tools. X431 V/V /Pros v1.0 with X-PROG3 cannot do ECU/TCU cloning.

Update Note:
Launch X431 GIII X-Prog 3 latest update for RESET PROG (V10.05) Function:

1) Added ECU reading and writing functions for 10 models of Siemens Engine including MSD80, MSD81, MSD85, MSD87, MSV90, SIM271DE, SIM271KE, SIMOS8.4, SIMOS8.5 and SIMOS8.6;
2) Added ECU reading and writing functions for 5 models of Transmission including 9G_Tronic, DQ380, AL551, AL450 and 8HPXX.

Launch GIII X-Prog 3 Advantages:

1. Supports VW/AUDI MQB platform engine ECU replacement or cloning (Read engine ECU data directly from the key).
2. Supports VW/AUDI MQB platform gearbox ECU replacement or cloning.
3. Supports ECU replacement for the fifth-generation of Audi (0AW/0B5) gearbox.
4. Supports reading, writing & cloning the ECU for the fourth-generation of VW UDS engine.
5. Supports BMW E chassis 8HP gearbox ECU reprogramming to empty.
6. Works with reprogramming device to backup/restore programming data (For Bosch/Siemens engine ECU).

Supported Brands:
VW, Audi, Skoda, SEAT, BMW, Mercedes-Benz, Toyota… (updates to be continued)

Supported Systems:
Engine system, automatic transmission, instrument system, CAS, body system, lock system…

Compatible With:
X-431 PRO V4.0, X-431 PRO 3 V4.0, X-431 PRO 5, X-431 PAD III V2.0, X-431 PAD V, X-431 PAD VII, X431 V, X431 V , X431 PRO3S , X-431 PRO GT ect.

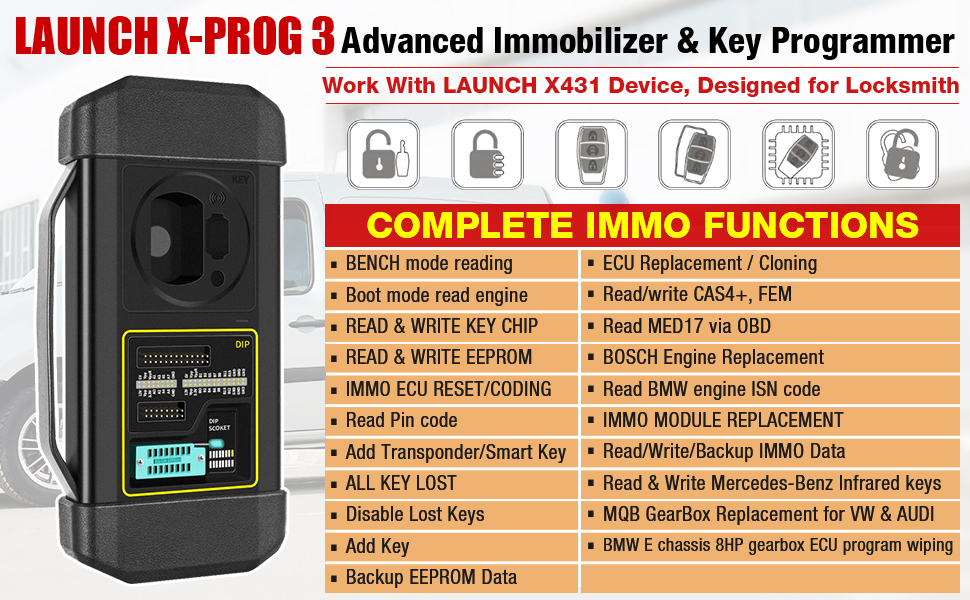

Core Functions:

1. Integrated the functions of key matching/ copy, anti-theft IC reading & writing, and ECU reading & writing, etc.
2. Supports common ECU/ MCU/ EEPROM major manufacturers, with over 1200 product models, and constantly updating.
3. Supports ECU replacement for all lost without disassembly for VW/AUDI non-35XX instrument (it can be read directly through an independent harness without removing the IC).
4. Supports ECU replacement for the fourth-generation of VW/ AUDI engine;
5. Supports ECU replacement for the fifth generation of VW/ AUDI Bosch and Siemens engines.
6. Supports all lost and replacement for the fourth generation of AUDI EZS, comfortable ECU, and KESSY IC.
7. Supports the BMW F and G chassis 8HP gearbox ECU reprogramming to empty.
8. Supports the BMW CAS4/CAS4 module replacement.
9. Supports the ECU cloning and replacement for BMW Siemens engines.
10. Erase the password for Mercedes-Benz engine and gearbox within 3S.
11. Add the function of calculating the password for the Mercedes-Benz key within 1 minute.
12. Supports VW/ AUDI MQB platform engine ECU replacement or cloning (Read engine ECU data directly from the key).
13. Supports ECU replacement for the fifth generation of Audi (0AW/0B5) gearbox.
14. Supports reading, writing & cloning the ECU for the fourth generation of VW UDS engine.
15. Supports BMW E chassis 8HP gearbox ECU reprogramming to empty.
16. Works with reprogramming device to backup/ restore programming data (For Bosch/ Siemens engine ECU).

Supported ECU MCU List:
(Support more than 1000 models, keep updating)

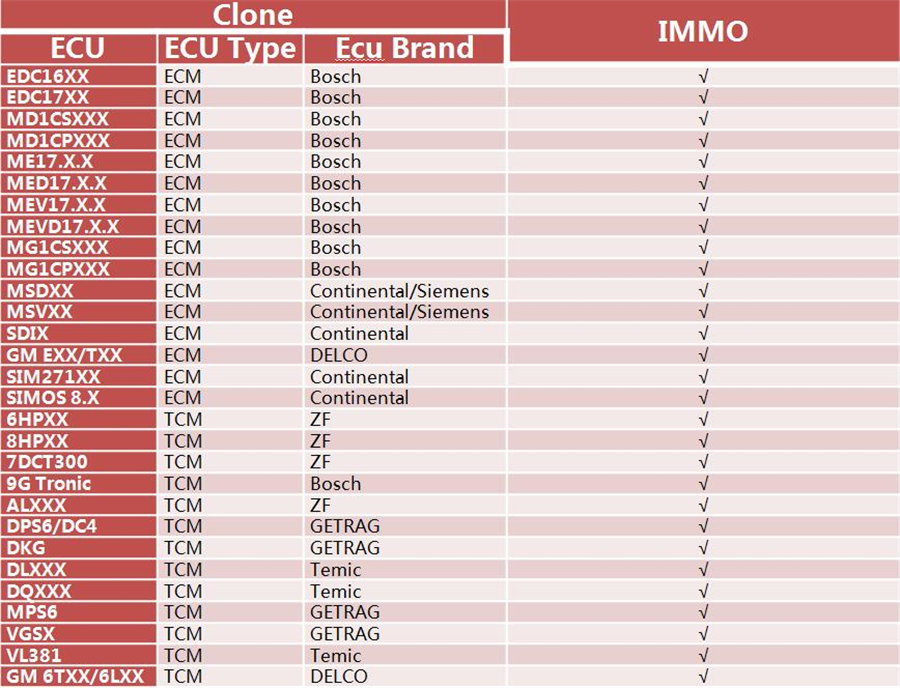

Launch X-prog3 supports following ECU/TCU cloning function:

Support EEPROM List:
(Support more than 1000 models, keep updating)

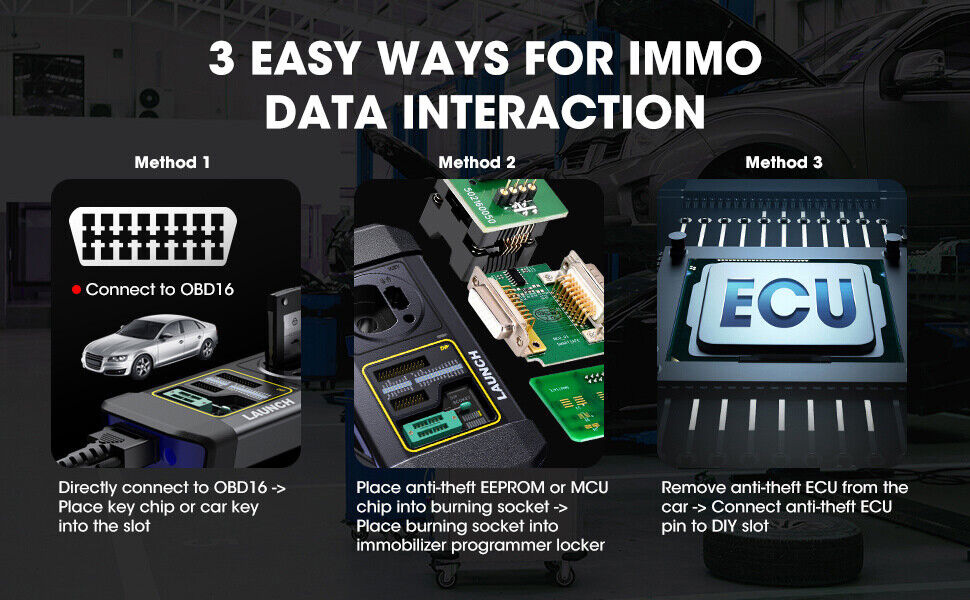

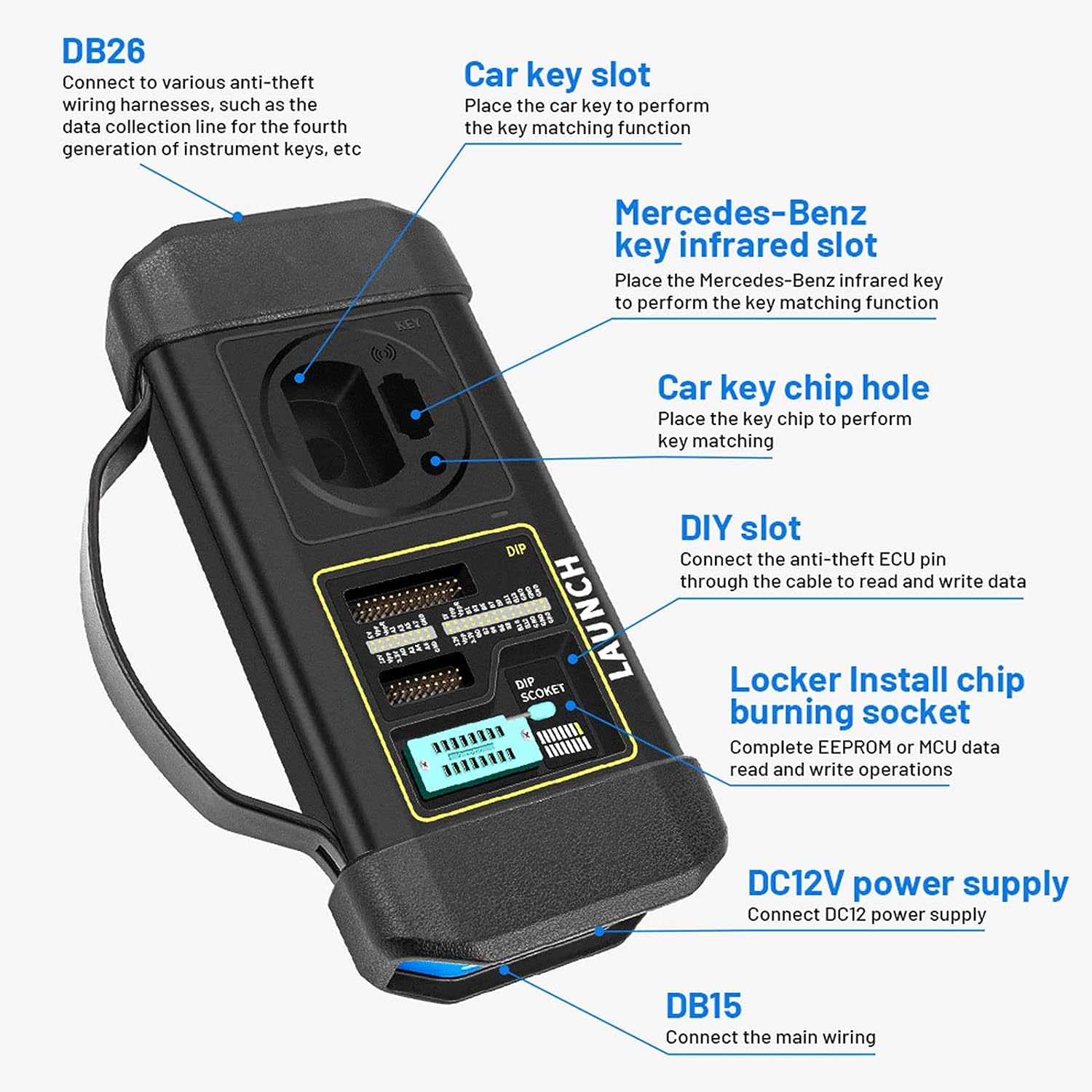

How to Use X-PROG3 to Read and Write Data?

• Method 1: Directly connect to OBD16 for key matching, data reading and writing, etc

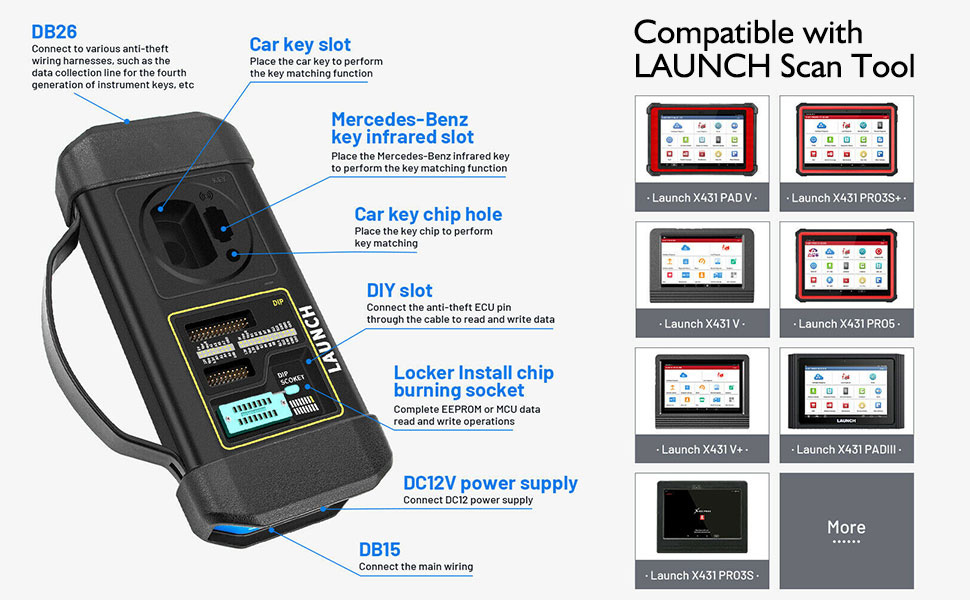

• Method 2: Place the anti-theft EEPROM or MCU chip in the chip burning socket, and then insert the chip burning socket into the slot of the immobilizer programmer locker and lock it to realize the data interaction between the IC anti-theft chip and the diagnostic host
• Method 3: After removing the ECU from the car, connect the anti-theft ECU pin to the DIY slot of the immobilizer programmer through the cable to realize the data interaction between the anti-theft ECU and the diagnostic host.

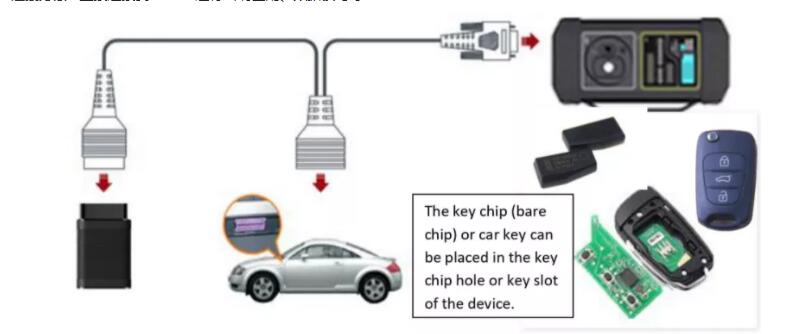

Connection method 1: Directly connect to OBD16 for key matching, data reading and writing, etc

Connection method 2: Place the anti-theft EEPROM or MCU chip in the chip burning socket, and then insert the chip burning socket into the slot of the immobilizer programmer locker and lock it to realize the data interaction between the IC anti-theft chip and the diagnostic host

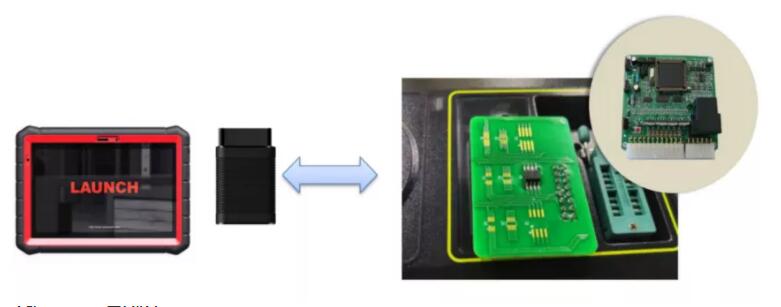

Connection method 3: After removing the ECU from the car, connect the anti-theft ECU pin to the DIY slot of the immobilizer programmer through the cable to realize the data interaction between the anti-theft ECU and the diagnostic host.

Launch X-Prog vs X-Prog 3

Specification:

FAQ:

Q: If the X-PROG 3 can reset the ELV (electric steering column lock) on the Mercedes W169?
A: Yes, it supported

Q: Does Xprog3 support immo program
A: Yes, it does

Q: Whether X-431 PRO V7.0 can work with X-Prog 3?
A: No, it can not, it needs work with X431 V 8inch and above X431 Scanner.

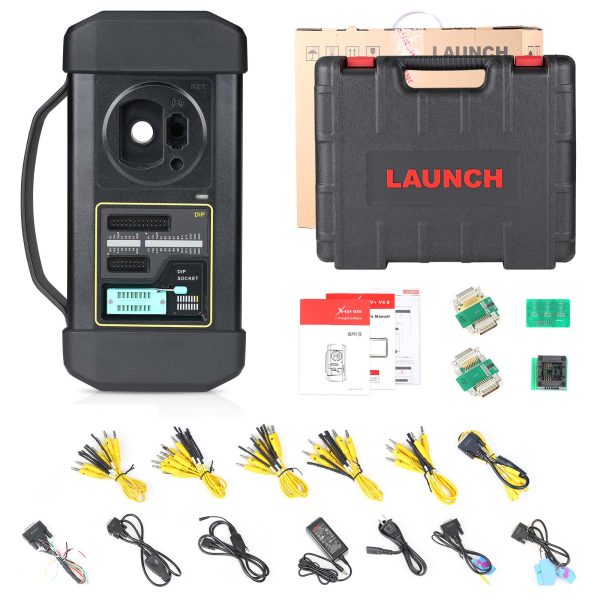

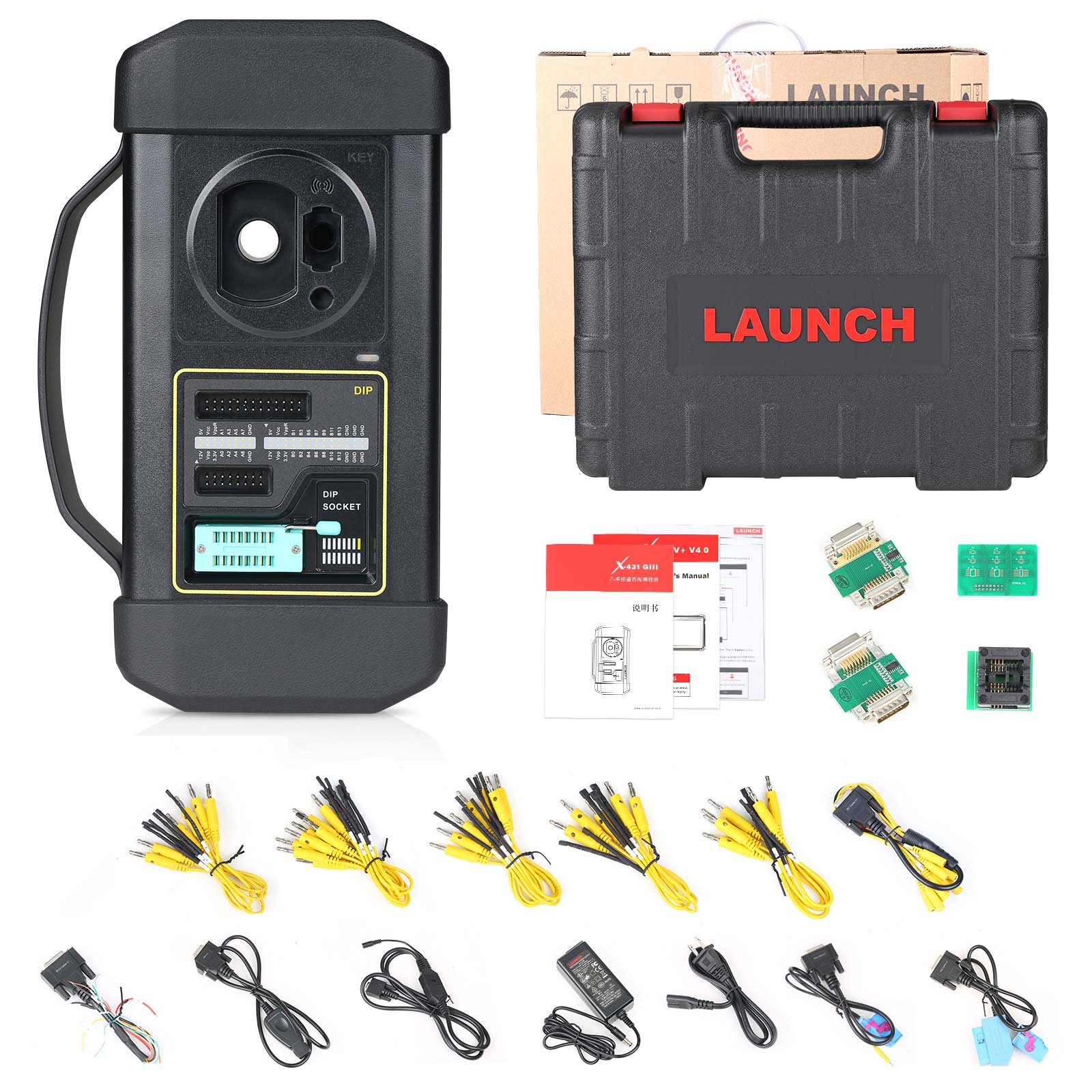

Package List:

1pc x Launch X-PROG 3
1pc x Power adaptor
1pc x Main diagnostic cable
1pc x The fourth-generation data acquisition cable
1pc x The fourth-generation of EEPROM data acquisition cable(without dismantling dashboard)
1pc x BENCH mode cable
1pc x MCU converter V1
1pc x MCU converter V2
1pc x MCU cable with multiple leads
1pc x EEPROM chip adaptor
1pc x Benz infrared analog acquisition key
1pc x MCU cable with multiple leads
1pc x EEPROM converter
1pc x User Manual
