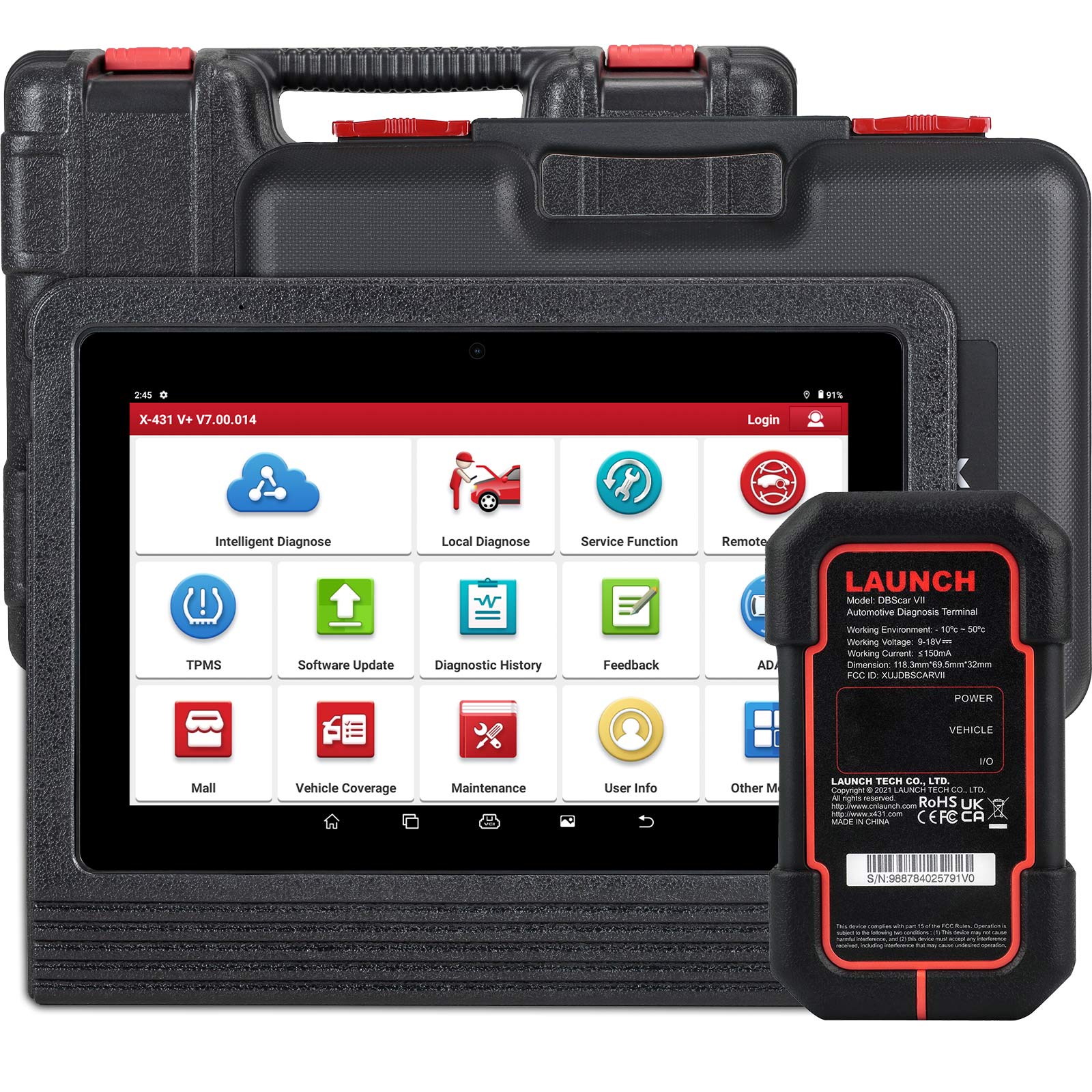

2024 LAUNCH X431 V+ V5.0 Car Diagnostic Scanner Bidirectional 37+ Services, AutoAuth FCA SGW Supports Topology
Description
Launch X431 V 5.0 10.01 Inch X431 X431V PLUS Wifi/Bluetooth Full System Diagnostic Tool (Updated Version of V 4.0)
X-431 V is a new Android-based vehicle trouble diagnostic device developed for internet applications via Bluetooth/Wi-Fi. X431 V combines the advantages of X-431 IV and X-431 Diagun III. X-431 V is suitable for a wide vehicle coverage, it can share maintenance data and case library, provide instant maintenance information, and build public and private maintenance social circles. X-431 V could support 12V light trucks. Moreover, X-431 V could coordinate with X431 Smartlink C2.0 Truck Module, then could support 24V trucks.
Highlights:
1. Global Version, No IP Limitation.
2. 2 Years Free Update Online. When the Free Update Expired, the Update Cost will be Here for One Year and Here for Two Years.
3. NEW!!! Support CANFD and DOIP car protocols, Supports Topology Mapping diagnosis: Newly update VCI DBScar VII can work on the car with CANFD and DOIP protocols. Communicate more car models and run faster diagnostics.
4. Wilder Vehicle Coverage: Covers more than 98% of the cars on the market from the USA, European, Asia and so on.
5. Advanced ECU Coding & Online Coding: Perform advanced ECU coding on more vehicles. Online Coding to update the vehicle ECU software, refresh hidden features to disable annoying functions, like disabling seat belt beep, and daylight running light, and Match certain components after repairs or replacements
6. 37 Special Functions: Comprehensive services, calibrations, resets, initializations, relearns options for daily auto maintenance services and up to 300 for special models.
7. Bi-Directional Control (Active Tests): The intelligent diagnostic scanner can output commands to ECUs, read data, and monitor the operation of the actuators. Through bi-directional operation, you can quickly know if a specific system, component, or subsystem is functioning properly or not.
8. OE Level All Systems Diagnostics and Auto VIN/Scan VIN/License.
9. More Advanced Functions, Supports Volkswagen Audi guidance function.
10. Support Multi-Language: English, Italian, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Dutch, Danish, Korean, Finnish, Swedish, etc
11. Support Diagnosing Heavy Duty Trucks with Extra X431 Smartlink C2.0 Truck Module: You can purchase an additional heavy-duty truck diagnostic module (a Bluetooth adaptor) that works with X431 V to diagnose all truck systems.
UPGRADED HIGH-END HARDWARE CONFIGURATION: What is upgraded in V 5.0?
1. 64GB storage (can be extended to 128G RAM with TF card): Keep all your customer information, data files, and vehicle records well-organized.
2. Branded Tablet with Android 10.0 system and 4.0 MP Pixel Front & Rear Camera, updated the ECU from 1.4GHz to 2.0GHz. Upgraded the Android OS system from 9.0 to 10.0. ease of use, speed, and functionality.
3. Fixed battery life issue. Now 6300 mAh lasting nearly 10 hours of continuous use on a single charge. improved the battery performance to increase the battery life.
4. Fixed more bugs and Upgrade new car makes up to 2024 models, V 4.0 has been changed to V 5.0.
5. Dual Wi-Fi (5GHz): Supports both 2.4GHz and 5GHz Wi-Fi, which offers faster, more stable, strong anti-interference data transmission (equivalent to USB communication). And the actual wireless working range is more than 10m.
6. NEW!!! Support CANFD and DOIP car protocols: Newly updated VCI DBScar VII can work on the car with CANFD and DOIP protocols. Communicate more car models and run faster diagnostics.
7. What is the difference between Launch X431 V V4.0 and V5.0?
LAUNCH X431 PRO3(V 5.0) Support Extension Modules: (So that you can perform more comprehensive vehicle inspections with LAUNCH X431 V )
* X431 XPROG3 GIII (IMMO For VAG Group Above 3.5)
* Launch BST-360 (Test Your Battery with Accuracy and Simplicity)
* X431 Smartlink C2.0 Truck Module (Diagnose gasoline vehicles & Diesel Trucks)
* X431 TSGUN or X431 i-TPMS (Activate all sensors, tpms relearn, program only Launch Sensors)
* WIFI Printer (Print codes and their definitions, along with live data, coding information and relearn procedures)
* Launch VSP-600 Inspection Camera Videoscope
* LAUNCH X431 O2-2 Oscilloscope Scopebox and Launch X-431 Sensorbox S2-2.
Notice:
1. Dealer Code: 86A or 86K.
2. Launch X431 V Supports 12V/ 24V Gasoline (Petrol) Cars, 12V for Some Diesel Cars, Not for Trucks, for truck you need but extra X431 Smartlink C2.0 Truck Module. If you only work on 24V cars you can choose LAUNCH X431 V SmartLink HD Commercial tool
3. Authorization: When you receive the device, contact our customer sevice and advise the Serial number of your device, also the language and country you want to open authorization, after authorization finished, then you can log on Launch DBSCar Website to register CC account and download software you want.
Extensive Vehicle Coverage – 80 Car Brands and 10000 Cars supported:
Aisa:
Changcheng, Daewoo, Huachen, Zhongxing, Indian Tata, JAC, Maruti, Perodua, Chery, Isuzu, Jinlong, Suzuki, Saipa, HM, Hmazda, Ikco, Malaysia Proton, Luxgen, Toyota, Changan, Futian, Honda, Wuling, V-class, Jpisuzu, Kia, Indian Maruti, Indian Mahindra, Malaysia Perodua, Hafei, Lifan, Mahindra, Nissan, Xiali, Zhongshun, Tata, Changhe, CN GM, Saicmg, Mazda, Zhongtai, Daihatsu, BYD Flyer, Hyundai, Proton, Subaru, Ssangyong, Joylong, Mitsubishi,Gonow, Qoros, Maxus, Mvm
Europe:
Vaz, Porsche, Maserati, BMW, Seat, VW, Audi, Citroen, Landrover, Smart, Renault, Skoda, Sprinter, Land Rover, Benz, Fiat, Opel, Volvo, Peugeot, Ferrari, Saab, Gaz, DR
USA:
Gm, USAFord, Chrysler, Willy
Australia: Austford, Holden
Brazil: BXFiat, BXGM
Launch X431 V Functions:
1. New Added OE-LEVEL Advanced Functions of LAUNCH X431 V
Guided Functions: Compatible with Volkswagen / Audi / Skoda / Seat etc.
Component Matching: Compatible with Volkswagen / Skoda / Seat / BMW / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru etc.
Online Coding: Compatible with Volkswagen / Audi / Benz / BMW / Seat / Porsche etc.
Online Account Login Service: Compatible with Volkswagen / Audi / Skoda / Seat etc.
Online Calibration: Compatible with Volkswagen / Audi / Skoda / Seat etc.
Power Balance: Compatible with Chrysler / GM / Ford etc.
Programmable Module Installation: Compatible with Ford / Mazda etc.
Flash Hidden Functions: Compatible with BMW / Porsche / Toyota / Subaru etc.
Actuator Test: Injector Test; Turn Off ACC Lane Keeping Assist
* For BENZ
Optimized ADAS (Advanced Driving Assistance System) function for SSLink products.
Optimized the function of Query VIN for police equipment.
Updated DPF function(Regeneration of the diesel particulate filter while driving) of diesel engine (CRR1, CRD2, CR43, CR6, CR6EU5, CR6BIN5EU6) under 117, 212, 207, 204 and more chassis.
* For SPRINTER
Added actuation test and special functions for the headlight range regulation module, reversing camera, and 360 degree panoramic camera under chassis 470/471.
Added the data stream and actuation test functions for the systems such as engine, gearbox, gearshift module, fuel pump, drive system, A/C, signal acquisition and actuation control module, and FL door under chassis 907/910.
2. ECU CODING & ECU Replacement
* Why does the car not work normally after replacing ECUs/ modules?
When an ECU/module is damaged, you have to replace a new one. After replacing the ECU/module, you have to follow the strict procedures of the manufacturer to match, learn, code, or even program it before it functions normally. Otherwise, the car cannot start or some parts cannot work normally.
* What can LAUNCH X-431 PRO3(V 5.0) Scanner do?
Featuring ECU/ Module replacement functions, LAUNCH X431 V PRO3(V 5.0) Bidirectional Scanner can help you initialize, match, relearn, or code the newly replaced ECU/module to get it back on track.AutoAuth for FCA SGW: Fiat Chrysler Automobiles (FCA) implemented a secure gateway module that was introduced on a selection of their 2018 and newer model vehicles. Access to diagnostic functions requires registration and authentication through AUTOAUTH for scan tools. You can directly log AUTOAUTH account on X431 V 5.0 bidirectional scan tool and process diagnostics for FCA vehicles seamlessly.
Diagnostic Report: After completing the diagnostic, you can generate reports from the stored diagnostic data, which will help you further analyze faults and better manage your repair orders. You can share the report with others via e-m-ail and print it out.
12-in-1 Live Data Stream: You can use Launch X431 V 5.0 escaner automotriz professional to view and capture real-time Live Data, get to know the current operating status for parameters, and provide insight into overall vehicle performance. There are three display modes available for data viewing: Graph, Value, and Combine. And you can display 12 data streams at the same time, providing great convenience for comparing data.
ECU Coding: Customize Your Car in Minutes
* Same as other LAUNCH X431 High-end OE-level scan tool , LAUNCH X431 V 5.0 has the capability of ECU coding to change preprogrammed options in the software, helping you customize your car faster as needed.
* Optimally code your car by changing some settings to fit your needs, such as setting alarms, doors locking, etc.
* Access the ECU to make full use of the hidden features or disable the car’s annoying functions, like activating the auto side mirrors folding function, disabling the automatic engine Start-Stop function, etc.
* Provide excellent solutions for issues of drivability, power loss, fuel efficiency, etc. to improve the car’s performance.
* Reprogram the adaptive data for certain components after repairs or replacements.
* ECU Online Coding is available for BMW, VW, Porsche, Renault, etc.
Please Note: ECU Coding changes preprogrammed options which depend on the type and number of electronic features already built in. Thus, ECU coding is not universally compatible and varies for different vehicle
3. Maintenance Services – 37 Mechanics Frequently USED Service Functions: Cover almost all available Reset Functions on Vehicle. ( car-specific)
LAUNCH X431 V 5.0 escaner automotriz professional can perform a wide range of actions as well as a number of special functions that make it an even more astonishing piece of equipment. These special functions include but are not limited to:
- Oil Lamp Reset Service – Reset the oil life systems every time the oil and oil filter are changed;
- Injector Coding – Code new injector numbers to replace the previous one when fitting the new injectors or after the replacement is completed;
- EPB Reset – Deactivate and activate the brake control system, assist with brake fluid control, open and close brake pads, etc.;
- SAS Steering Angel Sensor Reset – Perform steering angle sensor calibration and clear records;
- BAT battery service – Evaluate the battery charge state, monitor the closed-circuit current, register the battery replacement, etc.;
- ABS Bleeding – When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity;
- Throttle Adaptation – Initialize the throttle actuators so that the “learned” values stored on ECU are returned to the default state;
- TPMS service – Tire pressure resetting is required to be performed after maintenance is performed;
- Gear Learning – Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced;
- IMMO (K ey Programming) – Disable any lost keys and add new keys. **Please note: This function only work for some cars with easy system.You can send the year, model to us to check compatibility. WARM NOTICE: LAUNCH X431 V 5.0 2023 scan tool may not work IMMO program function for some cars. Therefore, if you buy this diagnostic scan tool for IMMO/key programming function, please c ontact us before to check the compatibility.
- AFS Headlamp Reset: Initialize the adaptive headlamp system.
- Sunroof Initialization: The sunroof needs to be reset when the sunroof control unit have communication problem or changed.
- Suspension Reset:Adjust the vehicle body height sensor for level calibration.
- Gearbox Reset; 16. Tire Reset; 17. A/F Reset; 18. Adblue Reset(Diesel Engine Exhaust Gas Filter); 19. Coolant Bleeding; 20. Language Change; 21. Nox Sensor Reset; 22. Stop/Start Reset; 23. Seat Calibration; 24. Delete Transport Mode; 25. Windows Calibration; 26.AC System Relearn/Initialization; 27. High Voltage Battery Diagnostics; 28. GPF Regeneration; 29. Camshaft/Crankshaft Sensor Relearn; 30. Interactive Vehicle Dynamics (IVD) Initialization Sequence; 31. Halt/Resume Transmission Adaptive Learning; 32. Passive Anti Theft System(PATS)Functions; 33. Relearn Vehicle Data; 34. Initialisation Of Automatic Tailgate; 35. Initialise Power Window Regulators; 36. Seat Standardisation; 37. Normalise Slide/ Tilt Sunroof; etc.
*!! Keep Growing with UPDATES !! (depending on the specific car models, not for all cars, ). and more and more function will be improved and optimized.
4. PROFESSIONAL TECHNICAL SUPPORT
* Health Report Generate and Share — With Launch X431 V , you can generate a full system Diagnostic Report by ONE-CLICK. The reports can be sent to the office or directly to your customer. You can also print out the vehicle health report card .
* Online Repair Resources — Provide more than 1600 vehicle models’ service & repair information, handbook, repair case and operation skill
* View History — Once a vehicle diagnosis is performed, LAUNCH X431 V will record the every detail of the diagnostic process. The History function provides quick access to the tested vehicles and users can resume from the last operation, without the necessity of starting from scratch.
* Maintenance Help — Including How-to Videos, operation skills, and user manual, Quick start guide etc.
What If I meet with Issues during the diagnosis ? For any problems found during the diagnosis, submit the feedback immediately. LAUNCH professional experts will provide perfect solutions for you as soon as possible.
The Difference Between Launch V and X431 V:
1. LAUNCH X431 V supports Guiding Functions for VW,AUDI,SKODA,SEAT, while X431 V dose not support.
2. You can use LAUNCH X431 V longer and avoid frequent charging, because its battery life is 1.49 times that of V.
3. LAUNCH X431 V is based on Andoird 9.0 , with 8-core 1,8GHz CPU, while LAUNCH X431 V is based on Andoird 7.0 with 4-core 1,4GHz CPU
4. The screen size of LAUNCH X431 V (10.1 inches) is larger than V(8 inches). One screen can display 15 data stream (Graphic and textual), three more than V, which is easy to navigate.
5. LAUNCH X431 V is compatible with LAUNCH X431 heavy duty modules (need to be purchased separately) and becomes a diesel-integrated diagnostic device with more powerful functions. LAUNCH X431 V Pro is not compatible with heavy-duty module. When you need to diagnose heavy-duty trucks, you need to purchase the heavy-duty full system diagnostic tool for $1,299 if you have a V. However, if you have V , you only needs to purchase the heavy-duty module for $799, which is more economical and convenient.
LAUNCH X431 V Software Update:
1. Your need to register on Launch official website.
2. Dealer code is 86A or 86K. Register code can be found from the password paper. You can use it freely after updating software to LAUNCH X431 V .
One click update: No need to download software to memory card anymore, you can do one click update directly through X431 V .
There is no paper user manual in the package, but you can find the user manual from your tablet.
Kindly notice:
1. Please check if your X431VPlus apk in your scanner is the latest one, if not, you need to update to latest X431 V .
2. Please do remember the account and password where you register your X431 V , because it is very important, without which you can not download car software
3. How to find user manual on your scanner?
Open X-431 V apk, find “Profile”–“Help”, you will see “USER MANUAL”
Comparasion Between Launch X431 V, X431 V and X431 5C Pro
Item No. | Launch X431 V 7 inch | Launch X431 V | X431 5C Pro |
Languages | Multi-Language | Multi-Language | Multi-Language |
Operation System | Android 9.0 | Android 10 | Android |
Bluetooth and wifi | Supported | Supported | Supported |
Dealer Code | 86A or 86K | 86A or 86K | 86A or 86K |
Update | One Year free update | 2 Year free update | 2 Years free update |
PC Parameters | CPU: Dual core 1GHz Battery: 3000mh, rechargeable polymer lithium battery Standby time: it is subject to the using environment. Generally it can keep working for 4 hours. Extension memory card: 32G Micro SD(TF) card supported Memory: 512MB Storage capacity: 2GB LCD: 7.0 inch LCD resolution: 1024X600 Touch screen: 5 points capacitive touch screen Cameras: 2 mega rear and 0.3 mega front Working temperature: -10°C ~ 55°C (14°F to 131°F) Storage temperature: -20°C ~ 70°C (-4°F to 158°F) |
Operating System: Android 10.0 CPU: Qualcomm Snapdragon 450, 8-core 2.4GHz/5GHz Battery: 6300mAh rechargeable polymer lithium battery Memory: 4GB Storage Capacity:64G (can be expanded to 128GB) LCD: 10.1 inch Resolution: 1280*800 Touch Screen: Capacitive Touch Screen Cameras: 5.0 megapixels front and 8.0 mega pixels rear. Wi-Fi: 802.11a/b/g/n/ac (2.4GHz / 5GHz) Bluetooth: Supported Working Temperature: 0 ~ ℃ 45℃ Storage Temperature: -20 ~ ℃ 70℃ |
CPU: Dual core 1GHz Battery: 3000mh, rechargeable polymer lithium battery Standby time: it is subject to the using environment. Generally it can keep working for 4 hours. Extension memory card: 32G Micro SD(TF) card supported Memory: 512MB Storage capacity: 2GB LCD: 7.0 inch LCD resolution: 1024X600 Touch screen: 5 points capacitive touch screen Cameras: 2 mega rear and 0.3 mega front Wi-Fi: supported Bluetooth: supported Working temperature: -10°C ~ 55°C (14°F to 131°F) Storage temperature: -20°C ~ 70°C (-4°F to 158°F) |
VCI | DBScar IV | DBScar VII | |
Supported Car Models | Support Total 59 kinds of software, refer to the newest oversea full configuration software list |
FAQ:
Q: How to save power?
A: Please turn off the screen while X-431 V keeps idle.
Set a shorter standby time.
Decrease the brightness of the screen.
If WLAN connection is not required, please turn it off.
Disable GPS function if GPS service is not in use.
Q: Can you verify if this does most diesel as well like toyota, isuzu, and mitsubishi mostly japanese models.
A: Dear sir, here is the vehicle coverage: if you need to confirm , please tell us the VIN ,car model and year for confirmation. Ford, Chrysler, GM, Mercedes Benz, BMW, Fiat, Peugeot, Saab, GMSA, EOBD2 Cars, Jaguar, Renault, Smart, Sprinter, VAZ, VW, Dacia, Land Rover, Romeo, Porsche, Volvo, AUDI, Citroen, Lancia, Acura, Daweoo, Lexus, Holden, Maruti, Tata, Infiniti, Proton, Isuzu, Mazda, Suzuki, Daihatsu, Mitsubishi, Toyota, Hyundai, Kia, Nissan, Subaru, Honda
Q: Does this tool offer super car diagnostics? ferrari, maserati, lamborghini? clutch pid, service reset etc
A: X431 V can test ferrari, maserati but not lamborghini, it can not only do clutch pid, service reset these basic function on your ferrari, maserati, but also can do such as battery reset, brake reset, oil reset, ABS bleeding, throttle adaptation, TPMS reset, DPF regeneration, gear learning, etc
Q: Can this scanner perform crank position relearn and idle relearn and can it do a crank position relearn on a 2007 subaru 2.5
A: Sure, of course, still it can do battery match, throttle match, epb reset, tpms reset, sas reset ,oil light reset, injector program, and this red outlook version is with 2 years free update, very economical, and now we are conducting promotion, please don’t hesitate, have any problem just contact us.
Q: Does it give full diagnostic on diesel vehicles?
A: This diagnostic tool can work on some 12V diesel vehicles, if you need to confirm, please email us your car model, year and VIN, we will tell you the result.
Q: How to do if the system runs slow?
A: In this case, please do the followings:
> Check all running applications and stop the unnecessary applications (Steps: Settings > Apps > Running > Tap the desired application and then tap “Stop”).
> Check all installed applications, remove the unnecessary applications (Steps: Settings > Apps > Downloaded > Tap the desired application and then tap “Uninstall”).
If all steps mentioned above are finished and the system still works slowly. Please try to close the system and reboot your X-431 V .

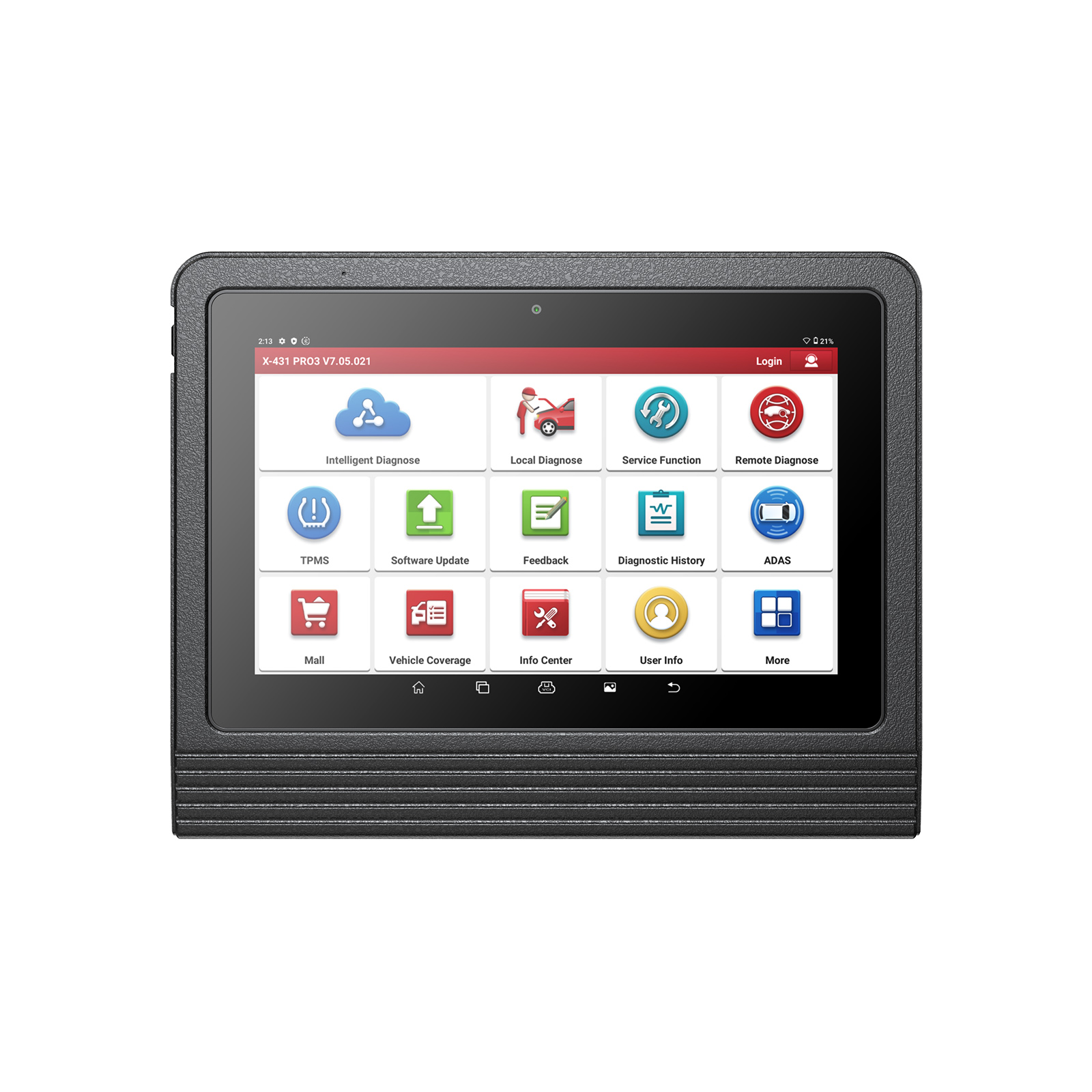

X431 V Tablet Parameters
Operating System | Android 10.0 |
CPU | Qualcomm Snapdragon 450, 8-core 1.8GHz |
Battery | 7000mAh rechargeable polymer lithium battery |
Memory | 4GB |
Storage Capacity | 64G (can be expanded to 128GB) |
LCD | 10.1 inch |
LCD Resolution | 1280*800 |
Touch Screen | Capacitive Touch Screen |
Cameras | 5.0 mega pixels front and 8.0 mega pixels rear |
Wi-Fi | 802.11a/b/g/n/ac (2.4GHz / 5GHz) |
Bluetooth | Supported |
Working Temperature | 0℃ ~ 45℃ |
Storage Temperature | -20℃ ~ 70℃ |

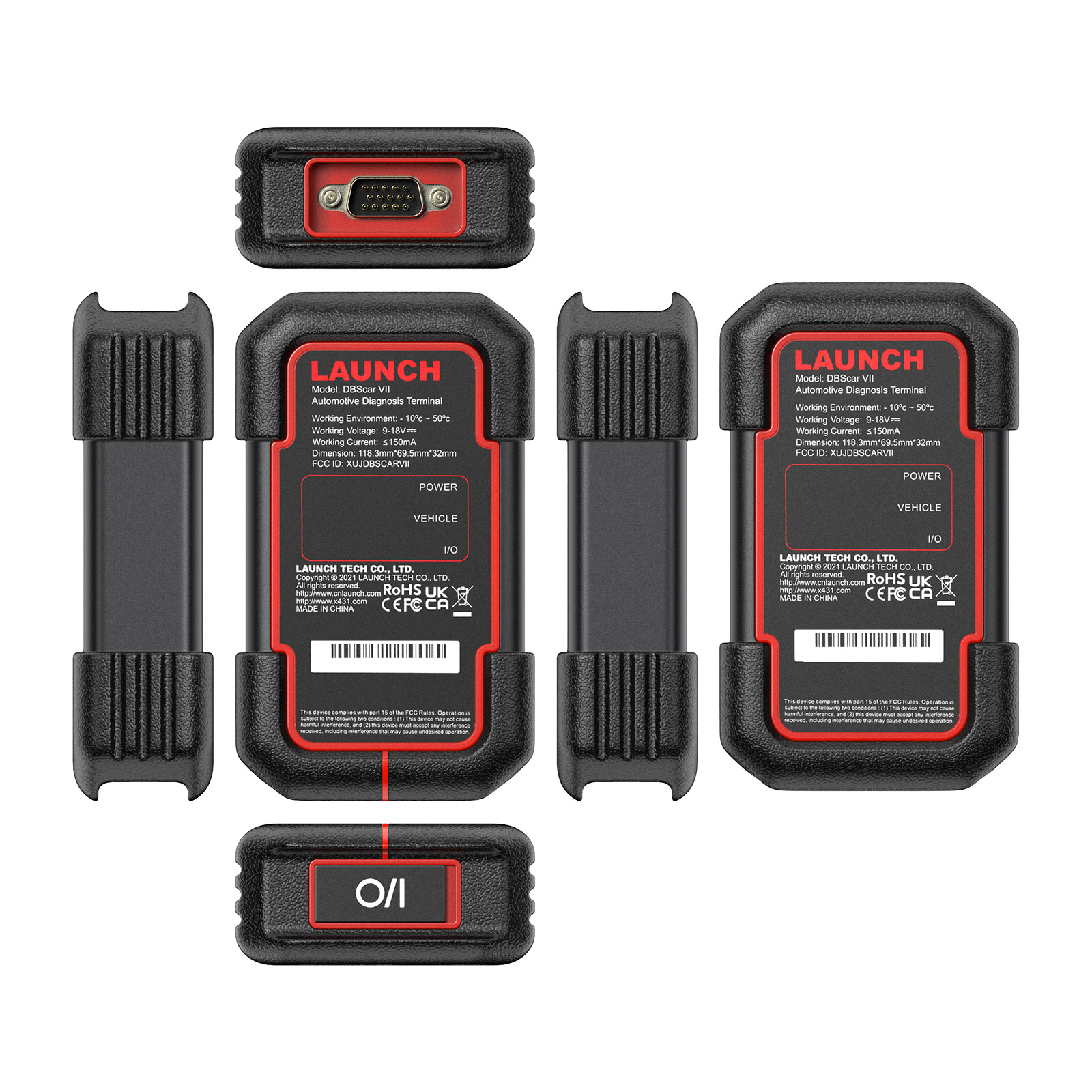

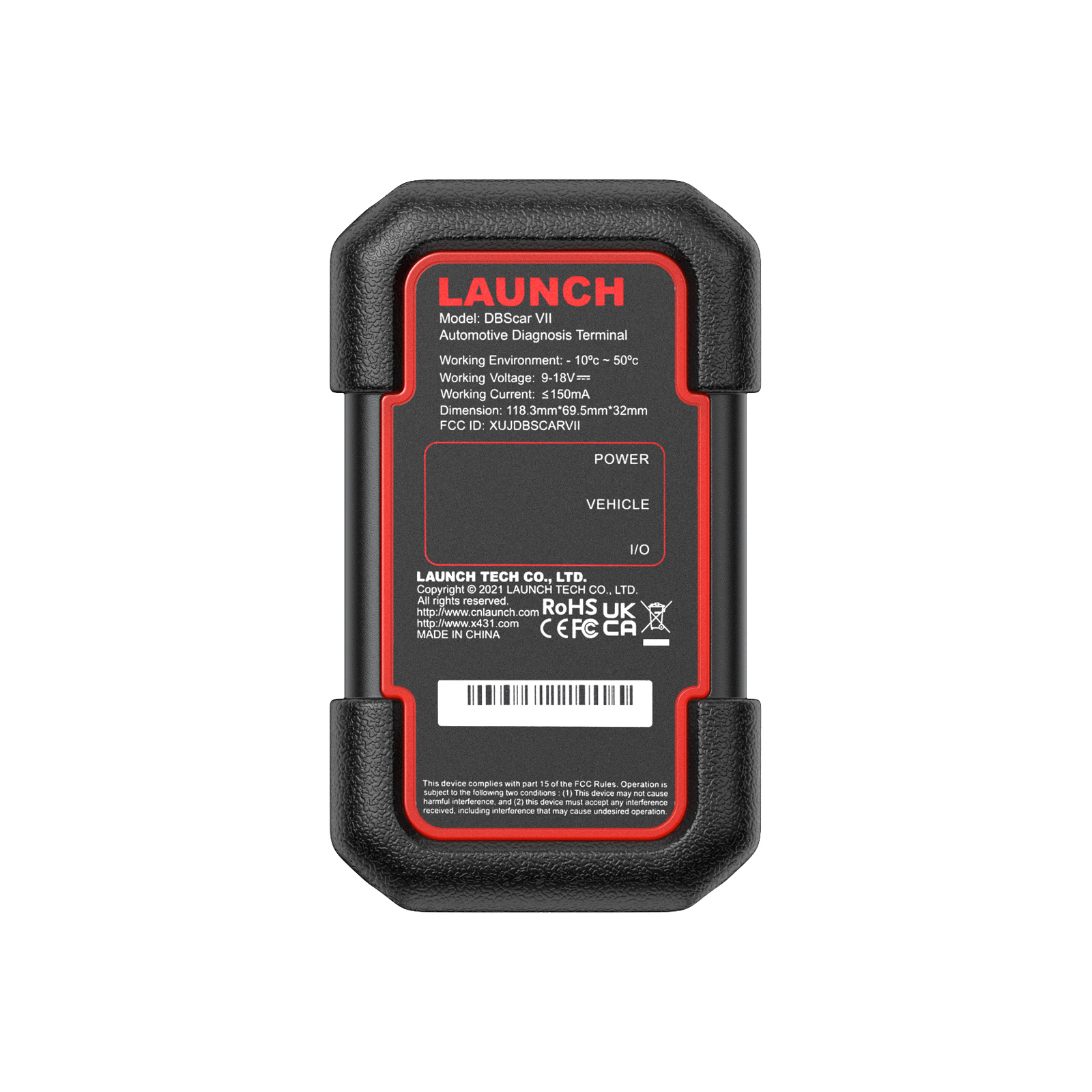

DBScar VII Connector Parameters
Connection | Bluetooth |
Working Environment | -10°c ~ 50°c |
Working Voltage | 9- 18V |
Working Current | ≤150mA |
Dimension | 118. 3mm*695mm* 32mm |
Kindly note:Because of unnecessary needs of diagnostic market , LAUNCH factory doesn’t provide COMBI-4,FUSE,SEDAN-3,FORD-20,SMART OBD 22-16E these 5 adpaters. You can also check the packing list for details when you receive LAUNCH X431 V , thank you!

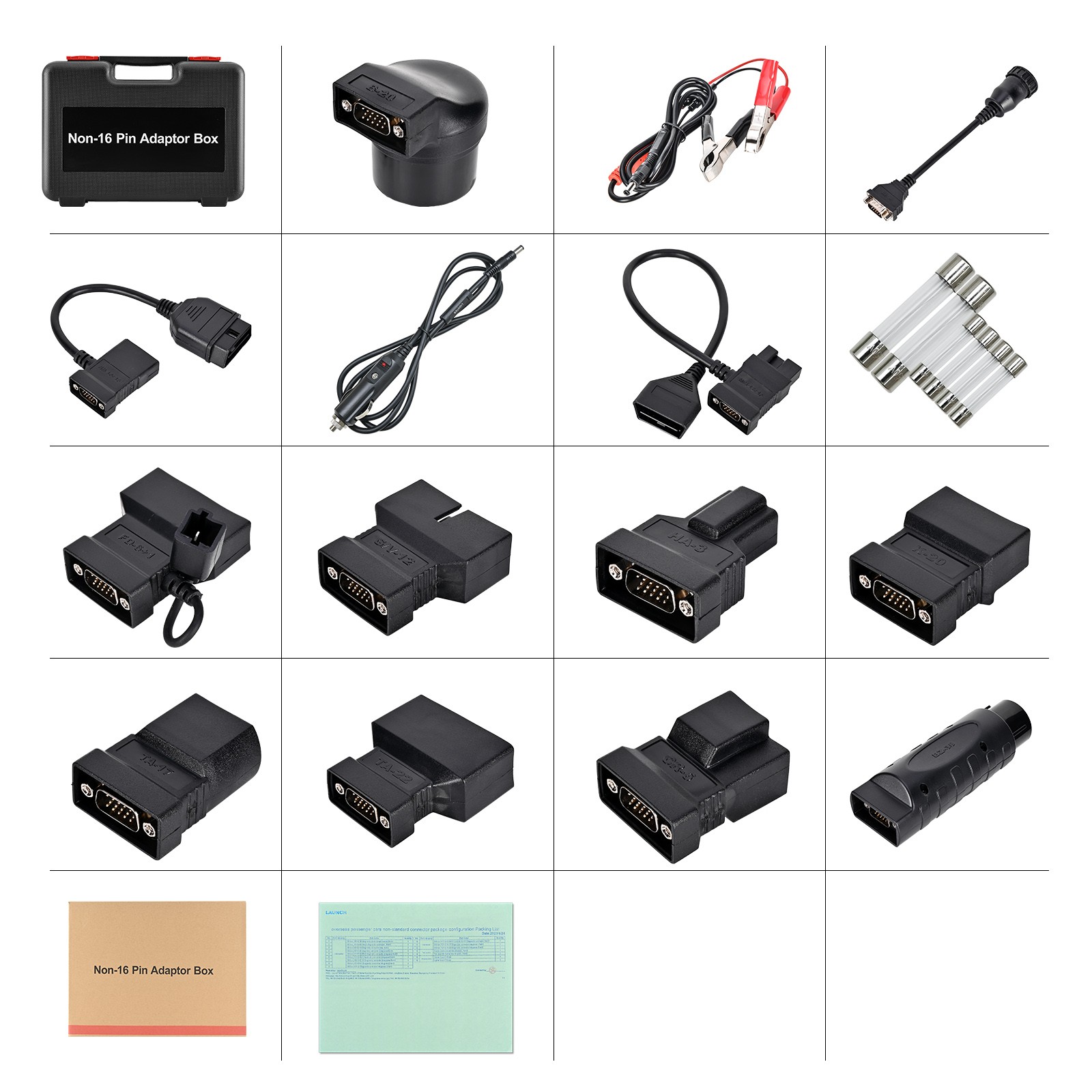

1pc x DBSCar VII diagnostic connector

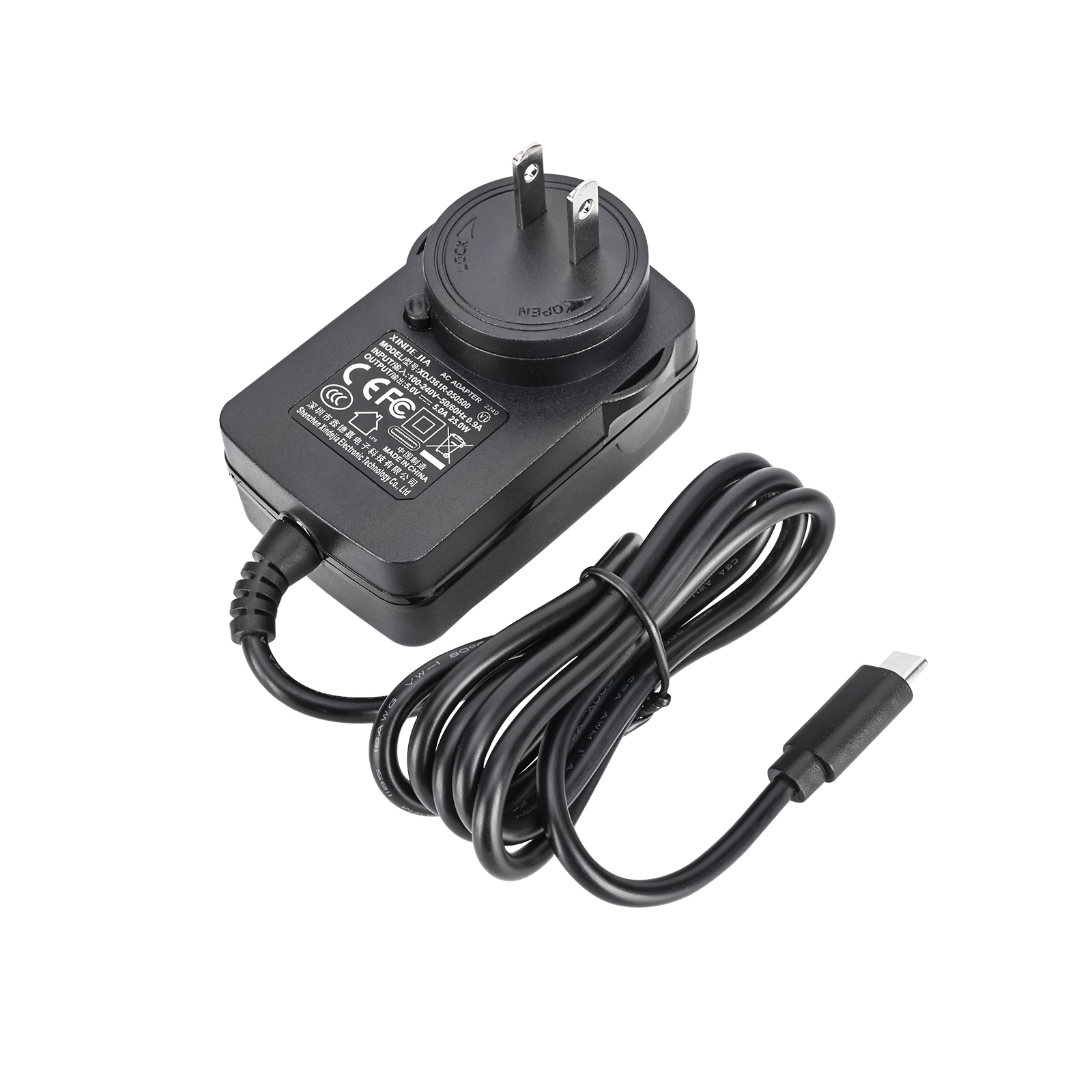

1pc x Power adapter

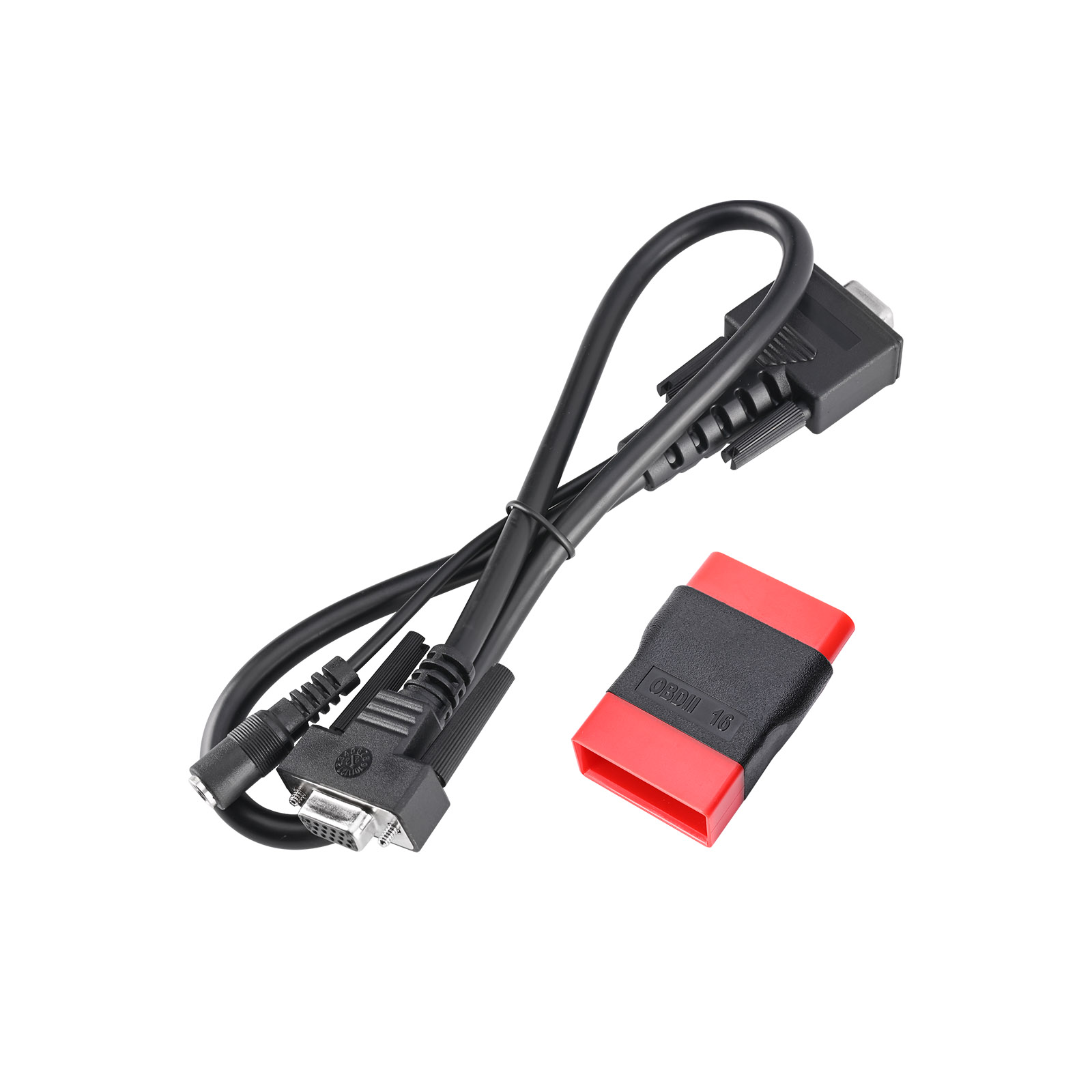

1pc x OBD main cable

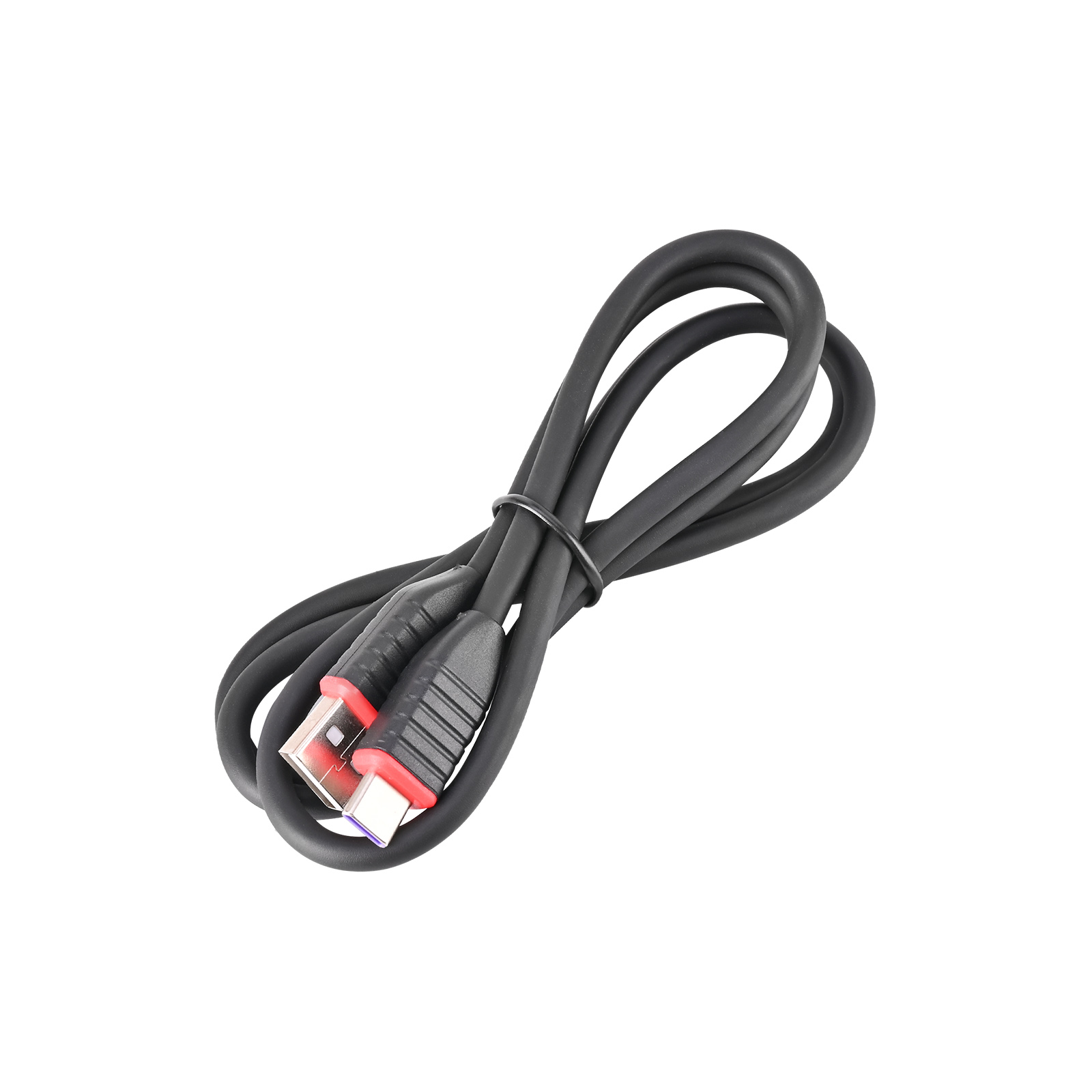

1pc x USB cable
1pc x BENZ-38 connector
1pc x BENZ-14 connector
1pc x NISSAN-14 16 connector
1pc x BMW-20 connector
1pc x CHRYSLER-6 connector
1pc x FORD-6 1 connector
1pc x GM/VAZ-12 connector
1pc x HONDA-3 connector
1pc x KIA-20 connector
1pc x MITSUBUSHI/HYUNDAI-12 16 connector
1pc x TOYOTA-17 connector
1pc x TOYOTA-22 connector
1pc x Double clamp power line connector
1pc x The cigarette lighter connector
1pc x UK standard conversion head
1pc x EU standard conversion head
1pc x US standard conversion head
1pc x Password envelope
1pc x Manual
1pc x Quick start
Additional information
Weight | 10.5 kg |
---|
