2024 Launch X431 IMMO Programmer GIII X-Prog 3 X-PROG3 PC Adaptor Overseas Online Configuration

Description

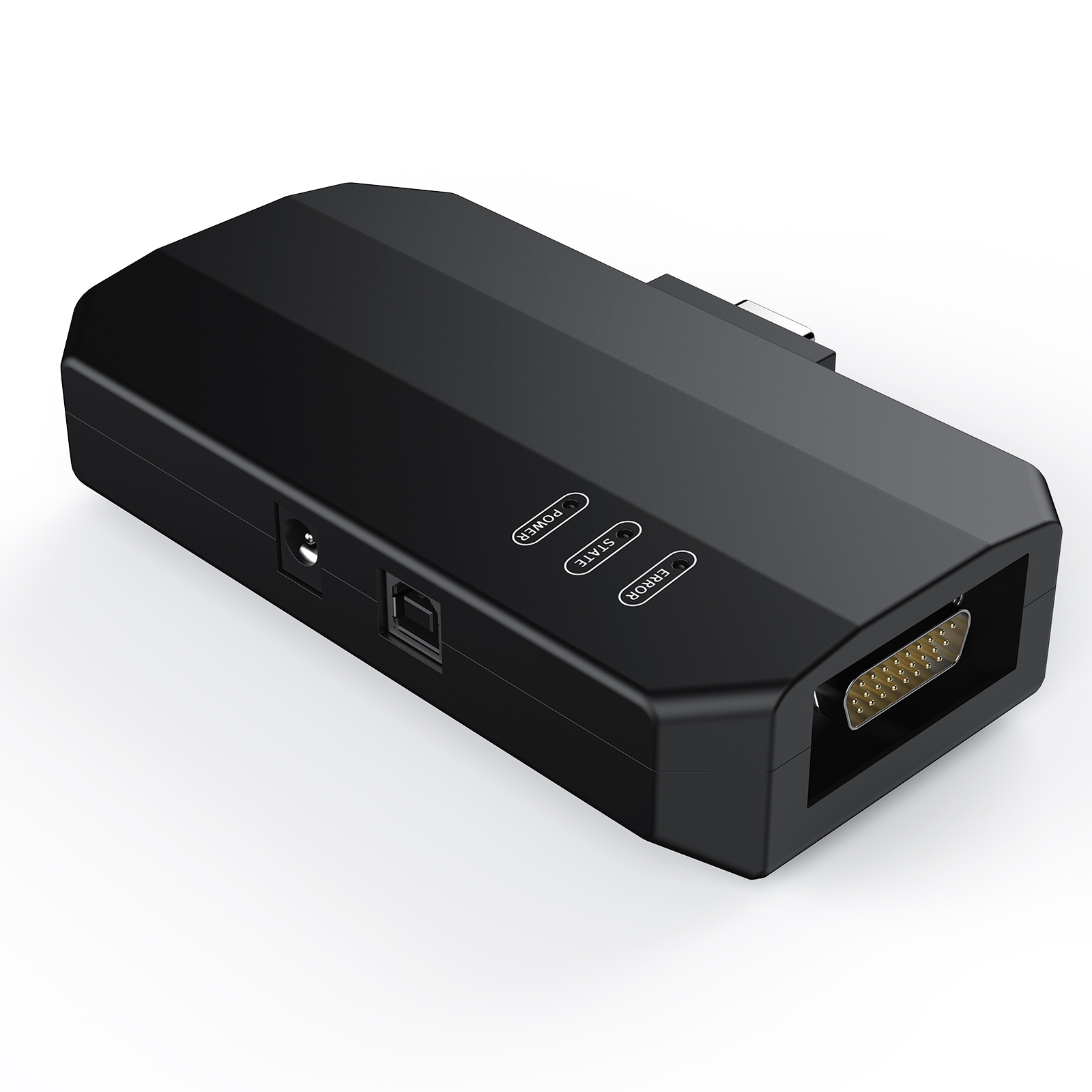

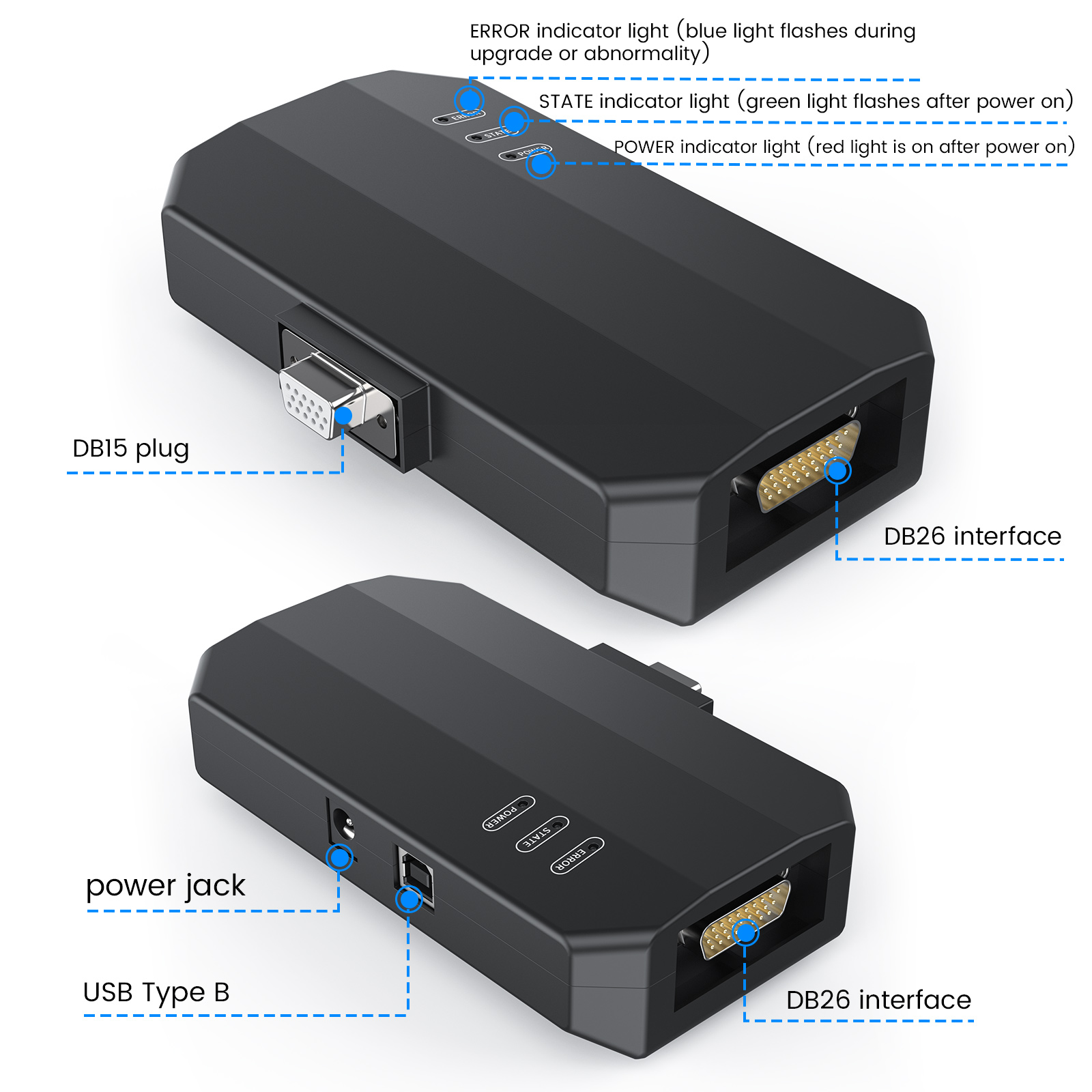

Firstly, connect the X-PROG3 PC ADAPTOR to the computer using a cable, and then connect the X-PROG3 PC ADAPTOR to G3.
Secondly, click to enter the software (without connecting the X-PROG3 PC ADAPTOR and G3, the software cannot be accessed). The serial number will be automatically recognized from the X-PROG3 PC ADAPTOR. The activation code needs to be obtained from the envelope of the X-PROG3 PC ADAPTOR.

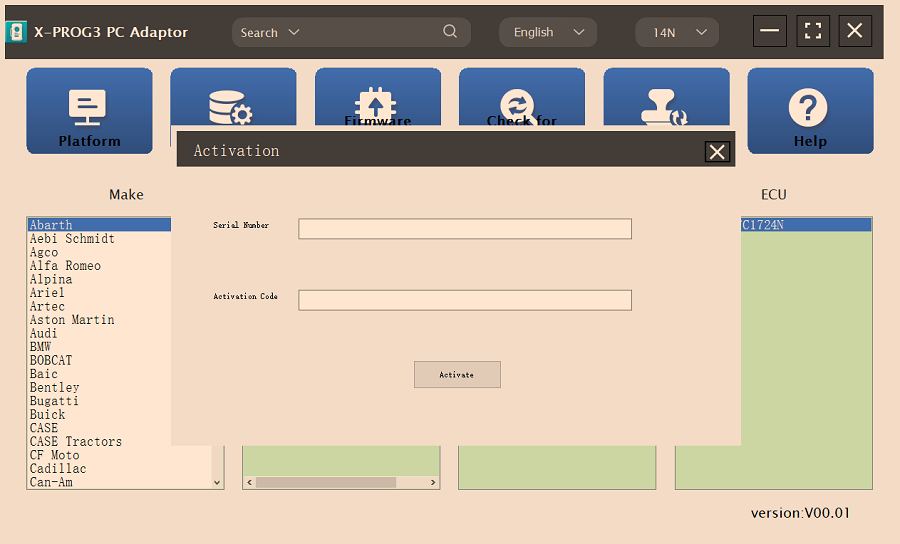

Thirdly, click [Activation] (only once, no need to activate it again later)

I. ECU Data Reading/Writing

1. Obtain the related ECU.

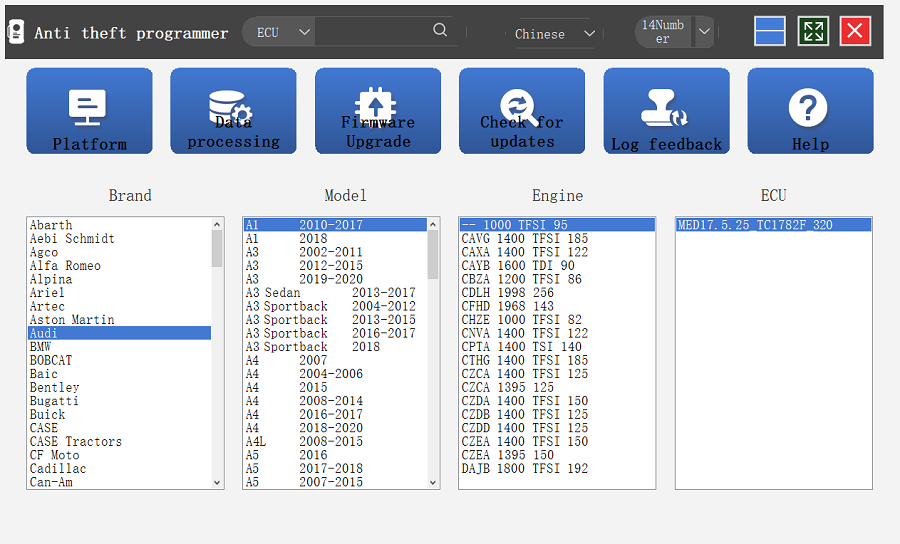

(1) Method 1: Obtain the desired ECU type through brand > model > engine > ECU in turn.

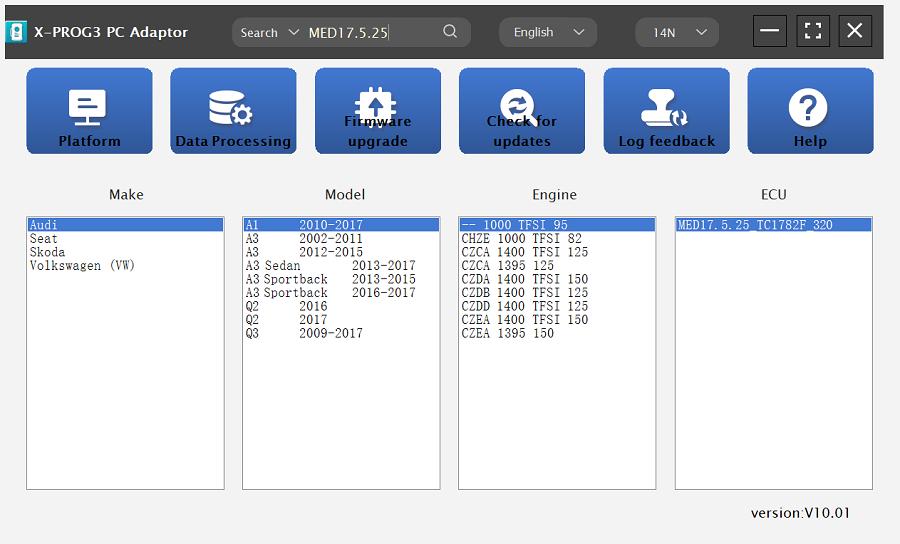

(2) Method 2: Query the desired ECU by entering a value in the search box. The search categories include brand, Bosch number and ECU type. For example, search for the MED17.5.25 engine by ECU type.

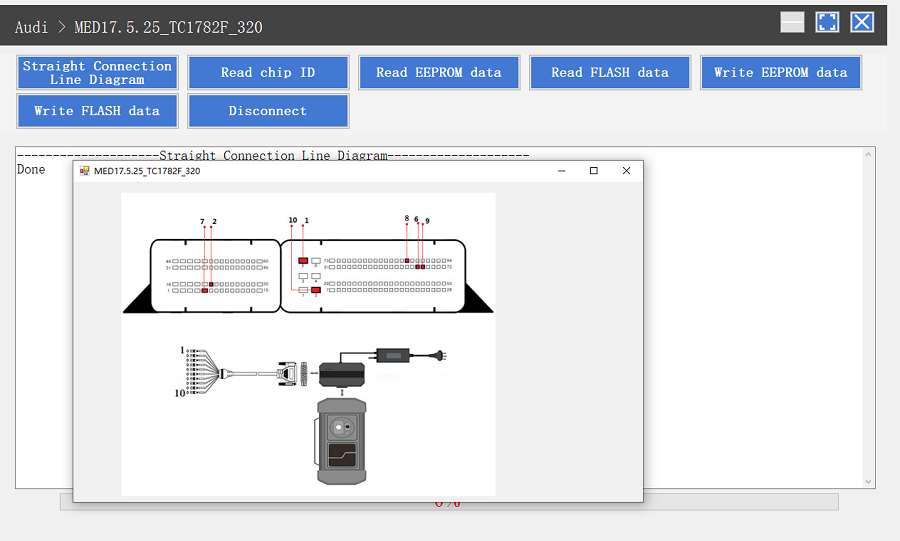

2. Click [Straight Connection Line Diagram] to obtain the ECU connection diagram.

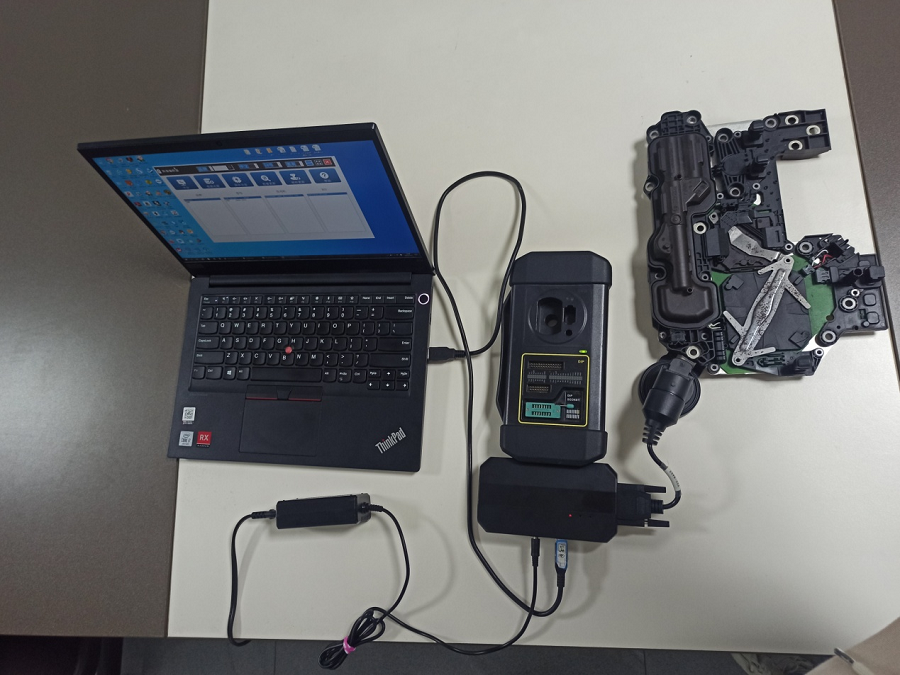

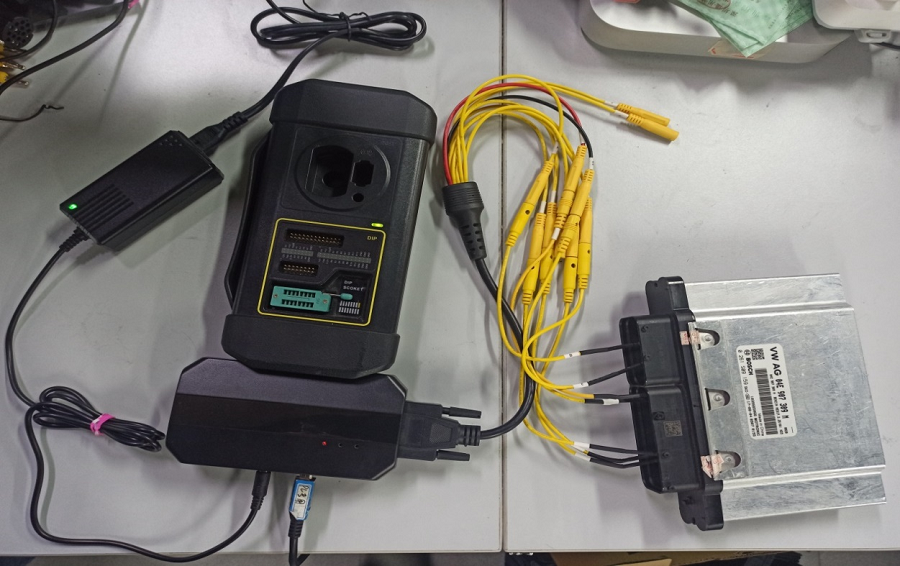

3. Connection: Connect the ECU and PCBOX according to the information provided in the connection diagram. The physical connection diagram of MED17.5.25 (using the BENCH mode line) is shown in Figure 5, and the physical connection diagram using the gearbox adapter.

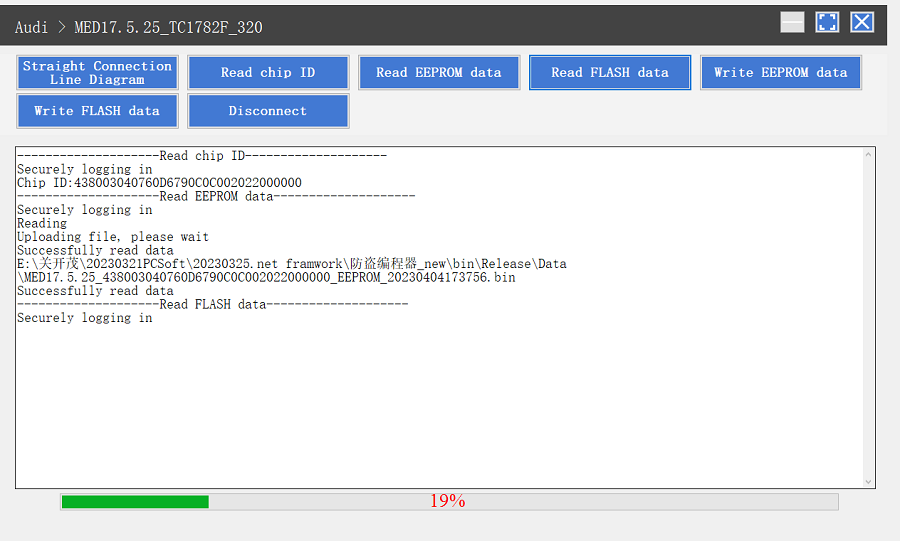

4. Read the chip ID.

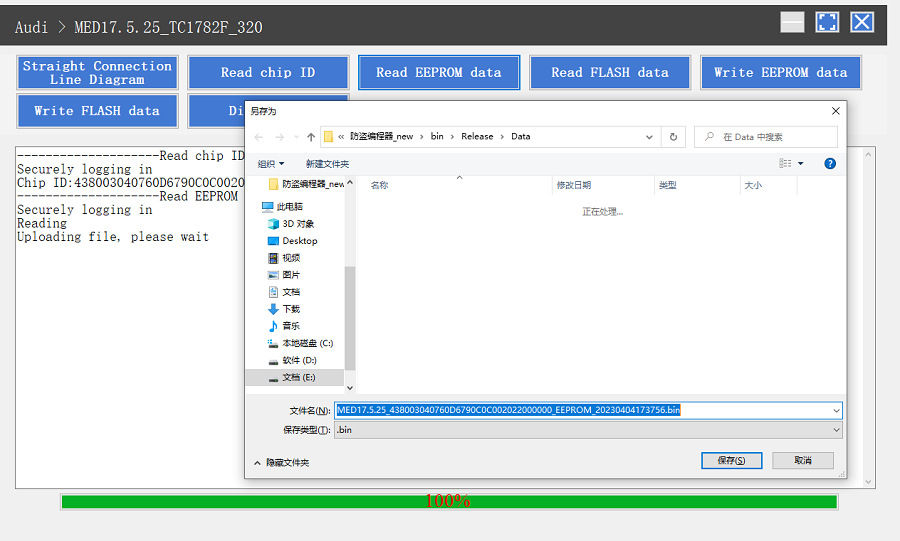

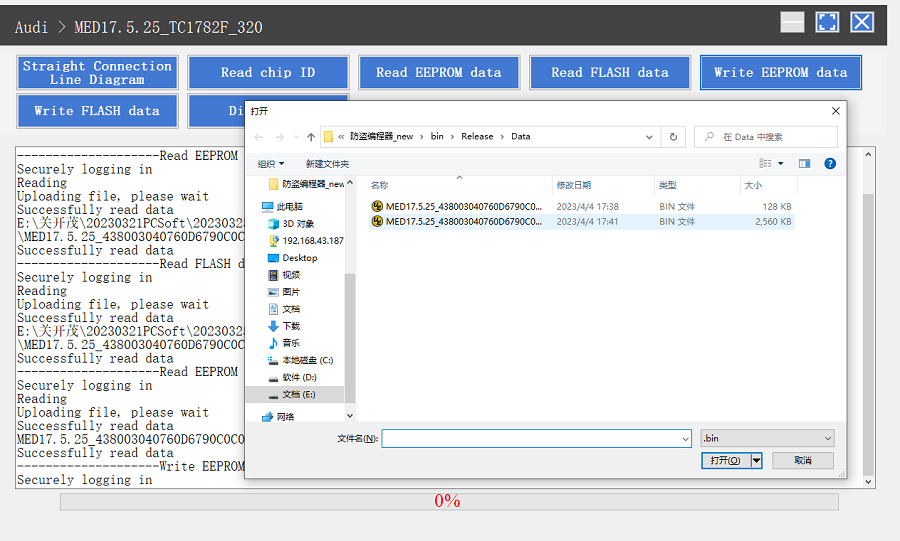

5. Back up the EEPROM data and save it.

6. Back up the FLASH data and save it.

7. Restore EEPROM/FLASH data.

II. Data Processing

1. Click the [Data Processing] button on the main page, and select [Immobilizer Shutoff and File Checkout] [Data Cloning] process Volkswagen series and Porsche engine data.

2. File verification and anti-theft shutdown (process: select file > connect network to obtain > save file).

Support list June 2023:

Optional adapter accessories(Not included in the package):

	Accessory Name	Material  code	function	picture
1	X-PROG3 Adapter Cable 1 (DQ200XX)	307110077	Used to connect the DQ200XX gearbox, and available models include VW, Audi, etc.
2	X-PROG3 Adapter Cable 2 (VL381)	307110078	Used to connect the VL381 gearbox, and available models include VW, Audi, etc.
3	X-PROG3 Adapter Cable 3 (DQ380)	307110079	Used to connect the DQ380/DQ381/DQ500 gearbox, and available models include VW, Audi, etc.
4	X-PROG3 Adapter Cable 4 (DQ250)	307110080	Used to connect the DQ250 gearbox, and available models include VW, Audi, etc.
5	X-PROG3 Adapter Cable 5 (DL501)	307110081	Used to connect the DL501XX gearbox, and available models include VW, Audi, Porsche, etc.
6	X-PROG3 Adapter Cable 6 (DL382)	307110082	Used to connect the DL382 gearbox, and available models include VW, Audi, etc.
7	X-PROG3 Adapter Cable 7 (VGS-NAG3)	307110083	Used to connect the VGS-NAG3 gearbox, and available models include Benz, Nissan, etc.
8	X-PROG3 Adapter Cable 8 (VGS2-FDCT/VGS-FDCT)	307110084	Used to connect the VGS-FDCT/VGS2-FDCT gearbox, and available models include Benz, Infiniti, etc.
9	X-PROG3 Adapter Cable 9 (VGS3-NAG2)	307110085	Used to connect the VGS3-NAG2 gearbox, and available models include Benz, etc.
10	X-PROG3 Adapter Cable 10 (8HP_V1(BMW/LR)/8HP_V2/8HP_V3)	307110086	Used to connect the 8HPXX/AL450/AL551/AL552 gearbox, and available models include BMW, Land Rover, Jaguar, Dodge, Alpina, Chrysler, Rolls Royce, Alfa Romeo, Aston Martin, Great Wall, Jeep, Lamborghini, Maserati, Iveco, etc.
11	X-PROG3 Adapter Cable 11 (MPS6)	307110087	Used to connect the MPS6/MPS6_GEN3 gearbox, and available models include Ford, Renault, Chrysler, Dodge, Land Rover, Volvo, etc.
12	X-PROG3 Adapter Cable 12 (DPS6)	307110088	Used to connect the DPS6 gearbox, and available models include Ford, etc.
13	X-PROG3 Adapter Cable Main Line (ML)	307110089	The extension wire of the gearbox harness, with one end connected to the immobilizer programmer and the other end connected to the gearbox harness
